From: A stress test to evaluate the usefulness of Akaike information criterion in short-term earthquake prediction

Figure 5

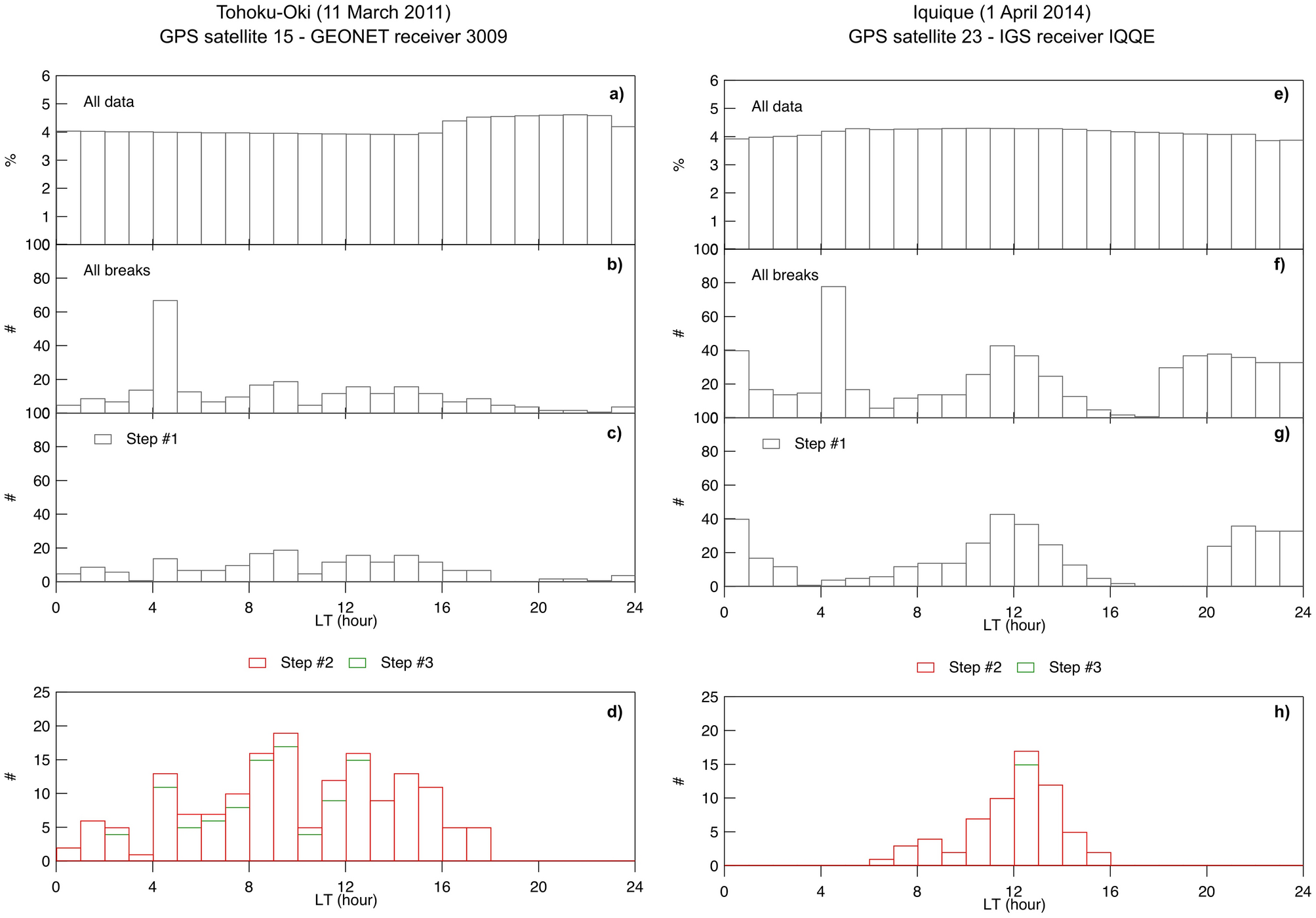

PDF of the LTs of positive breaks found by AIC method. From top to bottom, PDF of: (a,e) original vTEC values; (b,f) positive breaks found by AIC method; (c,g) positive breaks after Step #1. The lowermost panels d and h display the PDFs of the positive breaks after Step #2 (red) and Step #3 (green). Left side shows results for Tohoku-Oki earthquake, right side results for Iquique earthquake.
