From: A combined NMR and EPR investigation on the effect of the disordered RGG regions in the structure and the activity of the RRM domain of FUS

Figure 7

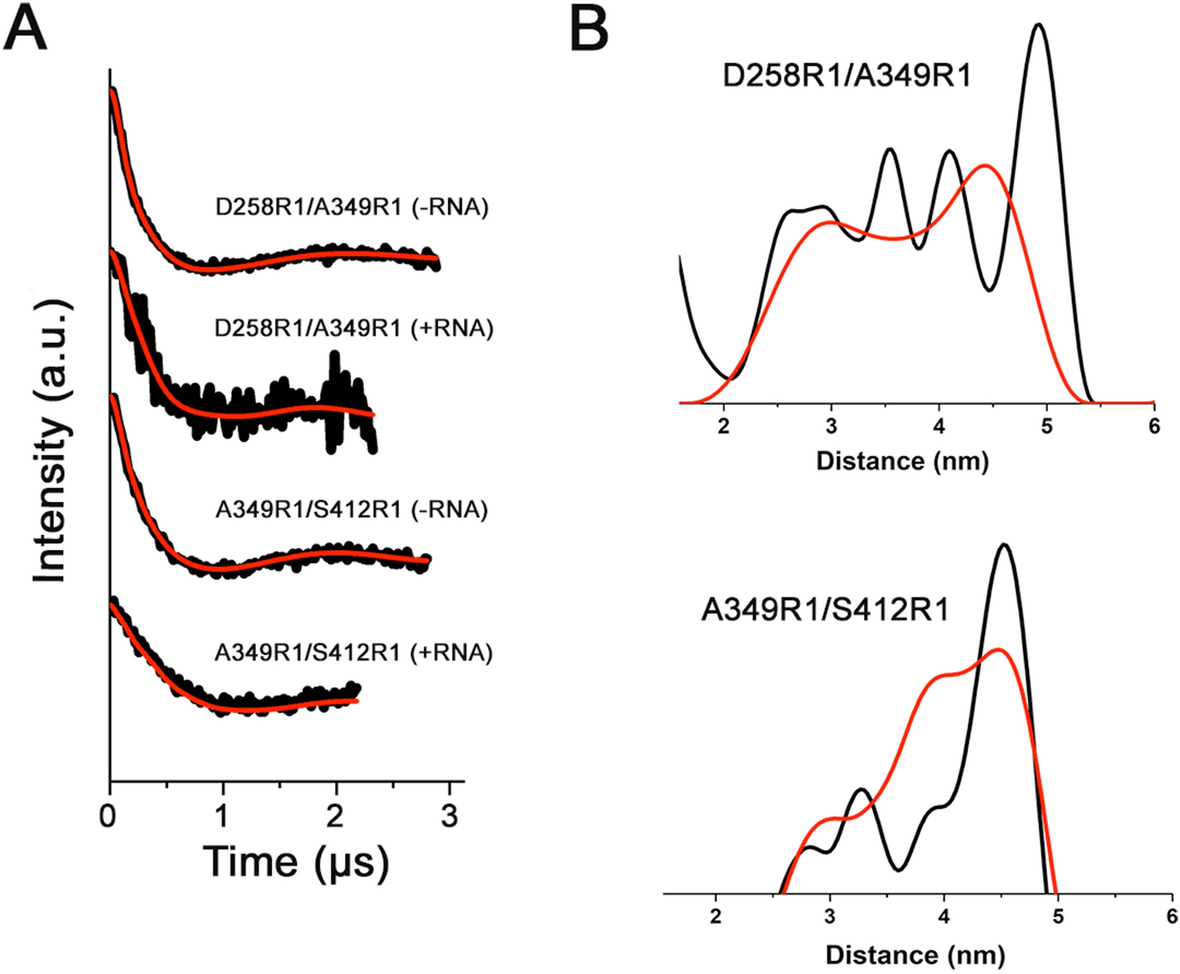

(A) Background corrected Q-band (9.8 GHz) DEER traces (black line) and corresponding fitted curve (red line) for D258R1/A349R1 and A349R1/S412R1 mutants of FUS165–422 in without and in the presence of hnRNPA2/B1 stem-loop RNA; (B) corresponding distance distribution without (black line) and in the presence of stem-loop RNA (red line) recorded for D258R1/A349R1 (top panel) and A349R1/S412R1 (bottom panel) mutants of FUS165–422.
