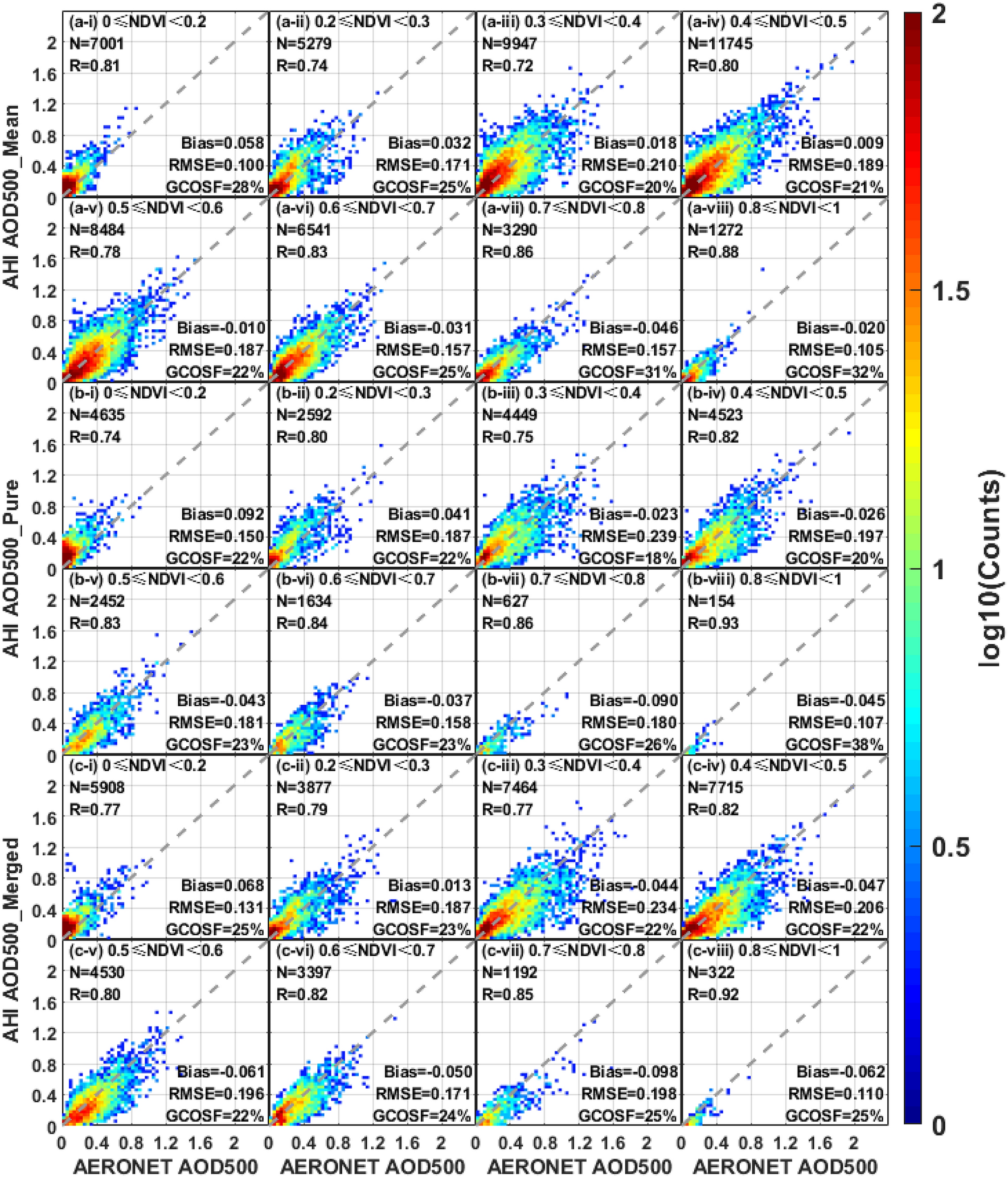

Figure 11
Scatter plots of AHI AOD versus AERONET observations over land surface with different vegetation cover. The panels (a–c) represent different AHI L3 AOD datasets (AODmean, AODpure and AODmerged), respectively. The subplots (i–viii) indicate the NDVI values from 0 to 1: (i) 0–0.2, (ii) 0.2–0.3, (iii) 0.3–0.4, (iv) 0.4–0.5, (v) 0.5–0.6, (vi) 0.6–0.7, (vii) 0.7–0.8 and (viii) 0.8–1.
