Figure 4
From: Laser excited super resolution thermal imaging for nondestructive inspection of internal defects

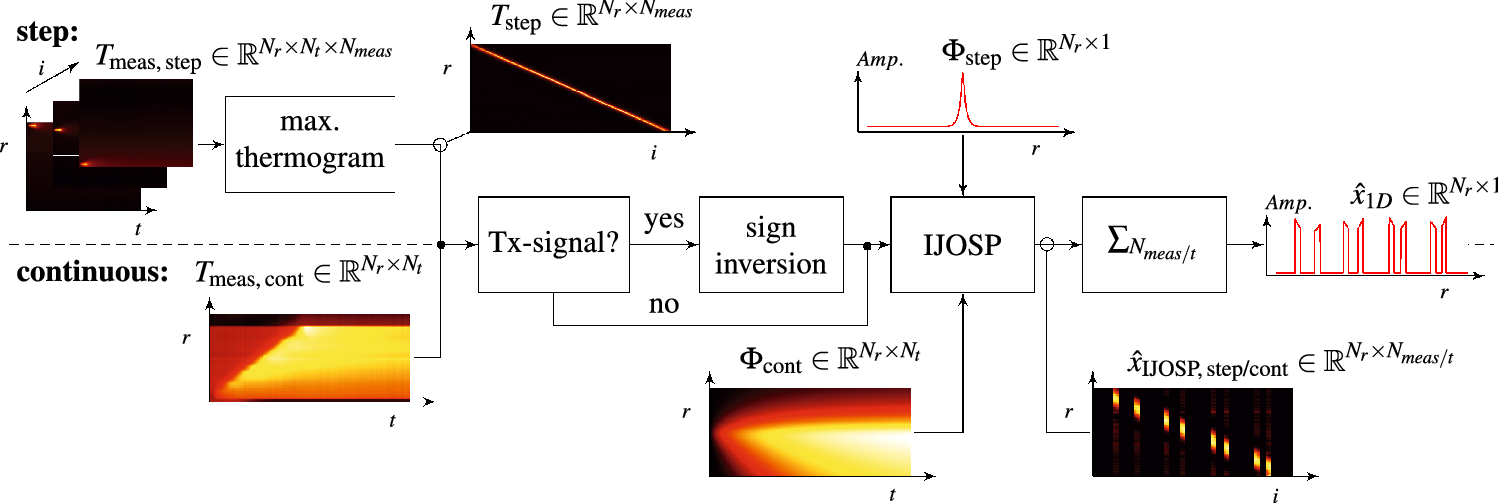

Flow chart depicting the data analysis procedure discussed in this work. The chart is split in two halves by a dashed line: the bottom half describes the necessary steps for continuous scanning data, while the top half shows the steps for data generated by step scanning. The direction of data flow is from left to right. The inspection of intermediate results is marked by empty circles. Tx = Transmission, \(T_{\mathrm {step}}:= [T^1_{\mathrm {step}}, \dots , T^{N_{\mathrm {meas}}}_{\mathrm {step}}]\), \(\Phi _{\mathrm {cont}}:= [\Phi ^1_{\mathrm {cont}}, \dots , \Phi ^{N_{t}}_{\mathrm {cont}}]\).
