Figure 5
From: Laser excited super resolution thermal imaging for nondestructive inspection of internal defects

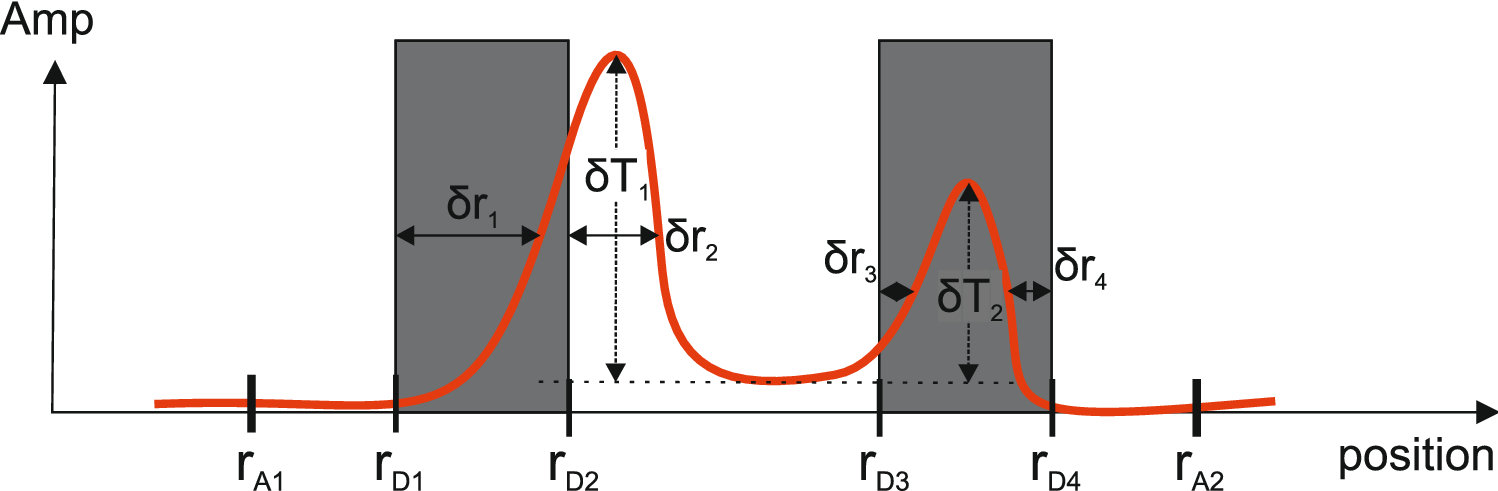

Explanation of metrics for QNDE: \(\delta T\) and \(\delta r\). The red curve illustrates an exemplary \(a_{\text {rec}}\) and the grey defect pattern shows the corresponding exemplary a.
