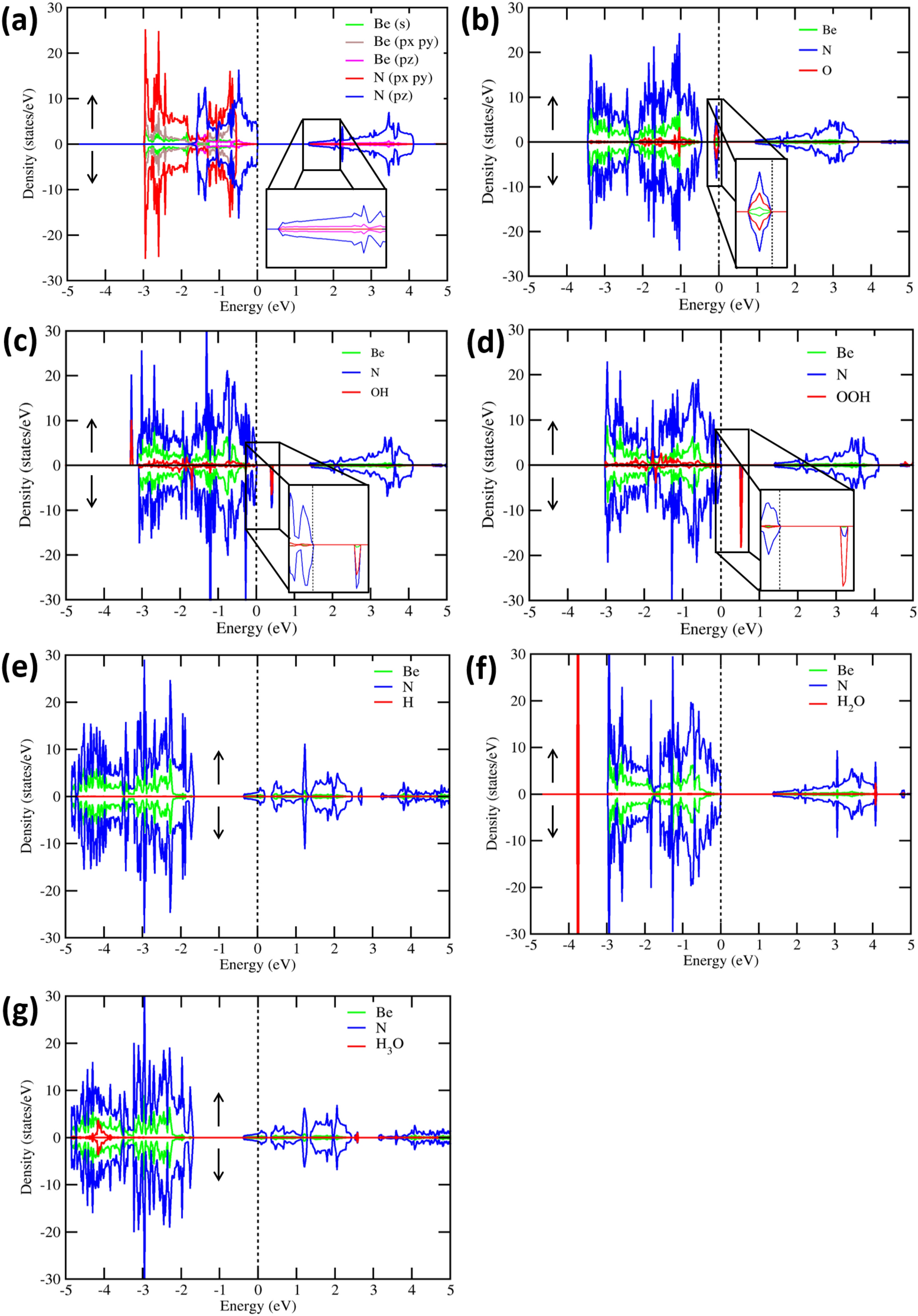

Calculated partial density of states for (a) a \(\hbox {BeN}_{{2}}\) monolayer, and for the (b) O, (c) OH, (d) OOH, (e) H, (f) \(\hbox {H}_{{2}}\)O, and (g) \(\hbox {H}_{{3}}\)O adsorbates onto the \(\hbox {BeN}_{{2}}\) monolayer. Arrows indicate the up (\(\uparrow \)) and down (\(\downarrow \)) spin channels. A magnified view of the states are shown in the insets.
