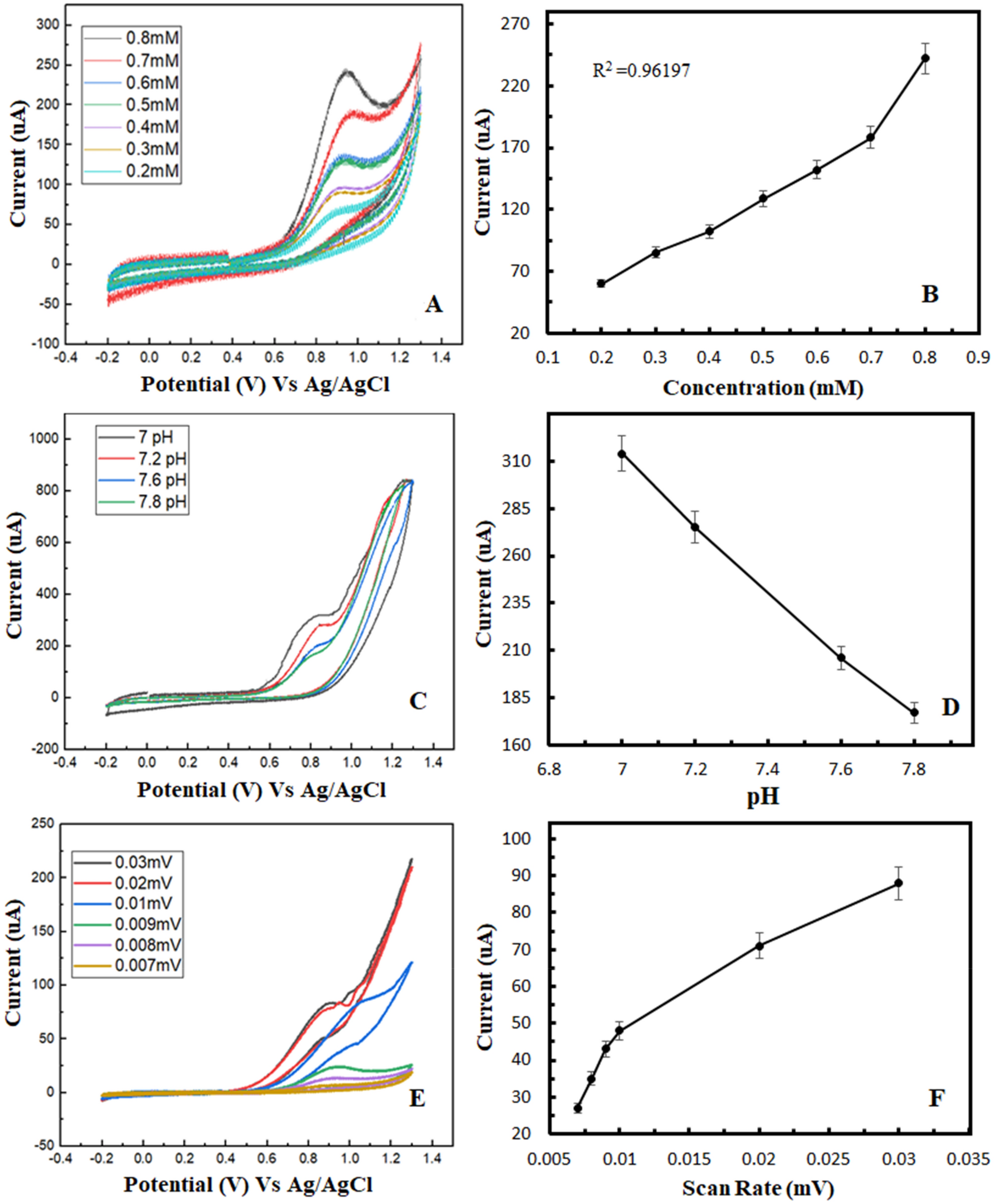

Figure 3

Cyclic voltammograms showing the effect of (A) concentration, (C) pH, and (E) scan rate, and their calibration curves (B,D, and F respectively) on Te@ZIF-8-GCE for the detection of hydrogen peroxide at a potential window of − 0.4 V to + 1.4 V.
