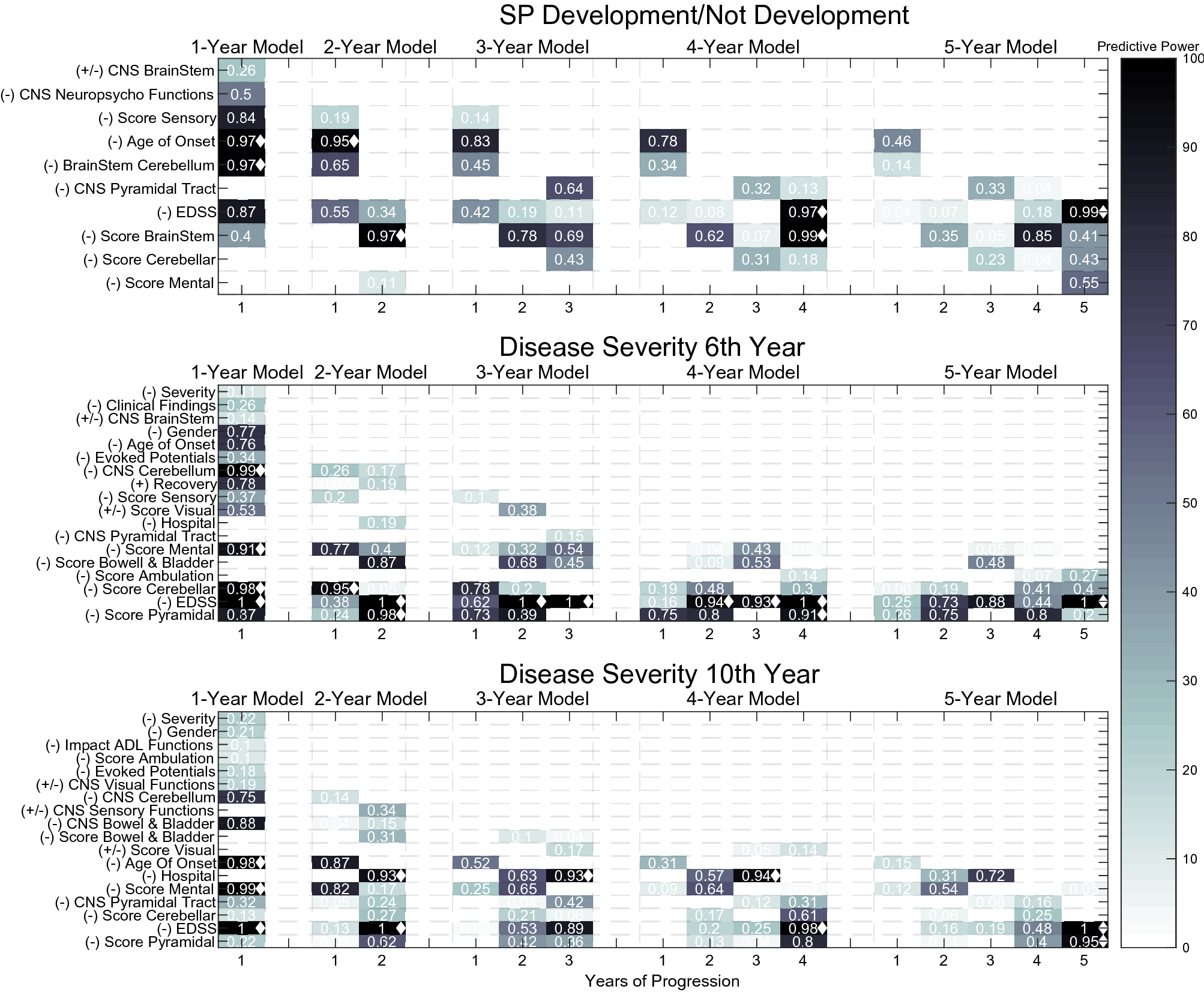

Figure 5
From: Prediction of disease progression and outcomes in multiple sclerosis with machine learning
The selected features for SP development/not development and disease severity, for all year models. Color represents predictive power, calculated by the presence of each clinical source among all \(k*10=100\) iterations. The signs are related to the clinical feature prognostic influence: (+) represents a good prognostic and (−) represents a bad prognostic. The diamond marker represents predictive power above 0.90.
