Figure 9

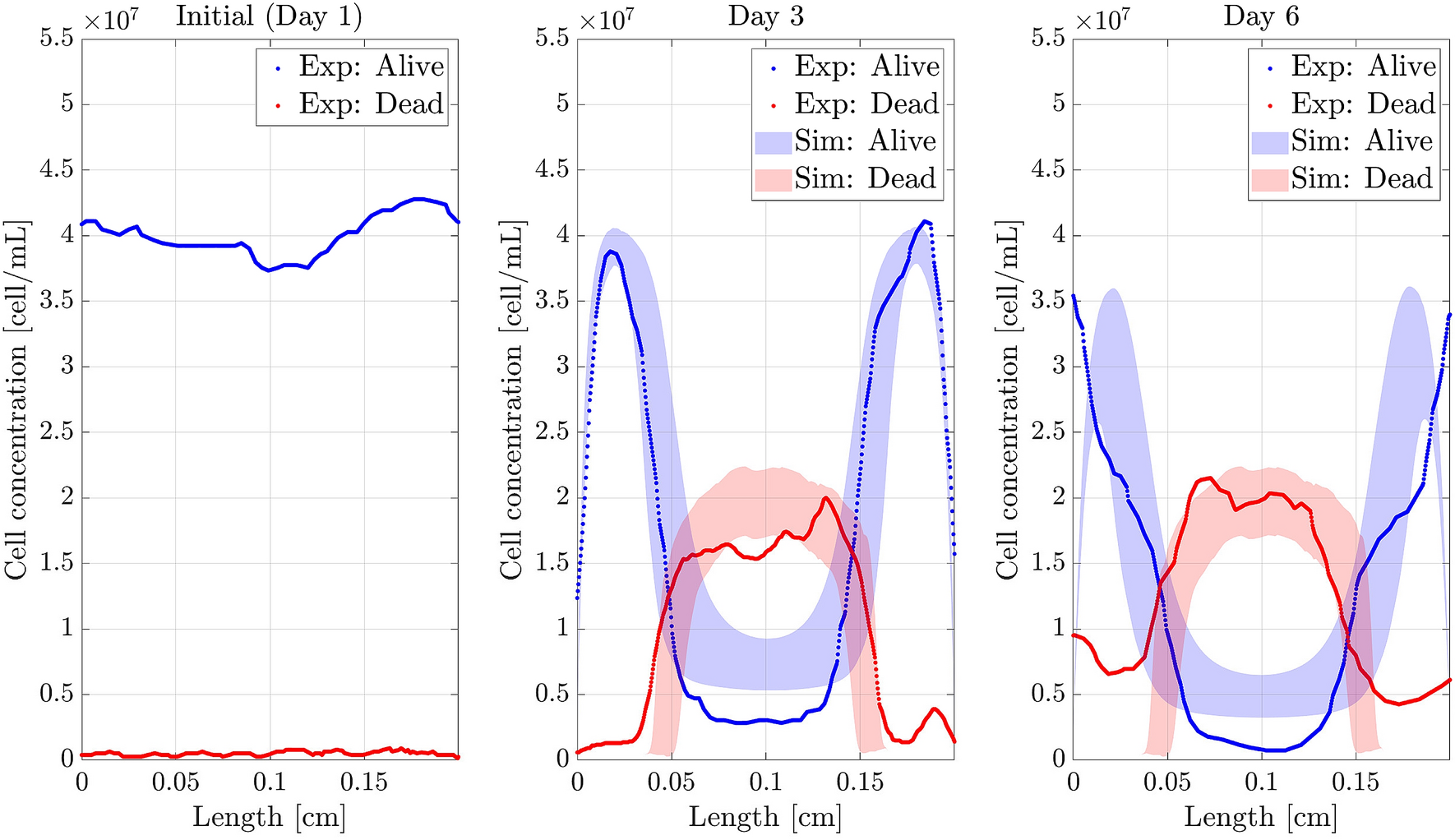

Necrotic core simulation. Confidence band of the simulated profiles and experimental results (y-axis) along the length of the chip (x-axis) for the necrotic core formation experiment. Sim: Simulated profiles. Exp: Experimental profiles.
