Figure 16
From: Gallium oxide nanowires for UV detection with enhanced growth and material properties

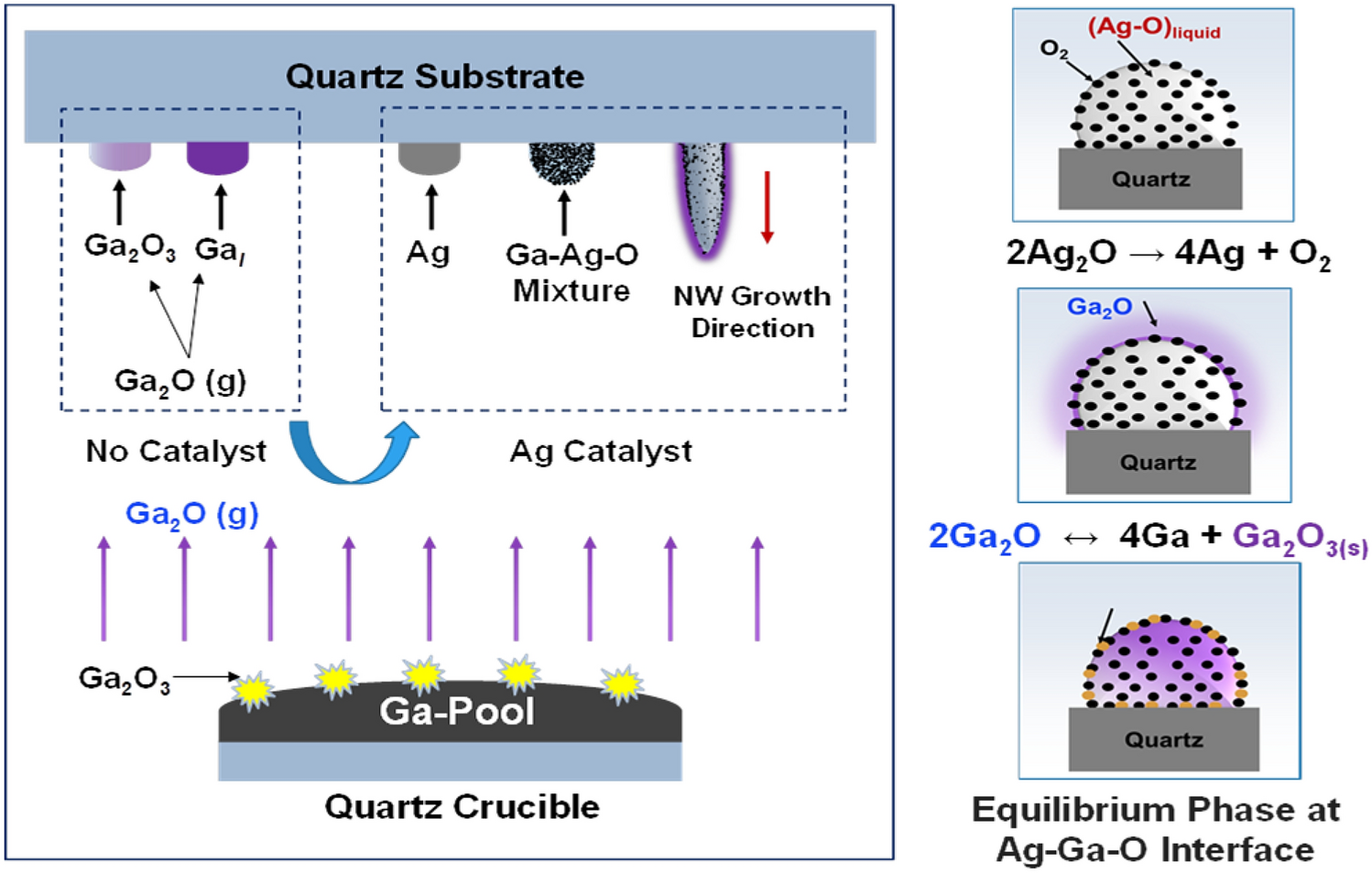

The growth mechanism of Ga2O3 NWs on a quartz substrate coated with 5 nm Ag film (facing downward). A pool of liquid Ga is heated in a quartz crucible that sits under the quartz substrate with ~ 10 mm gap.
