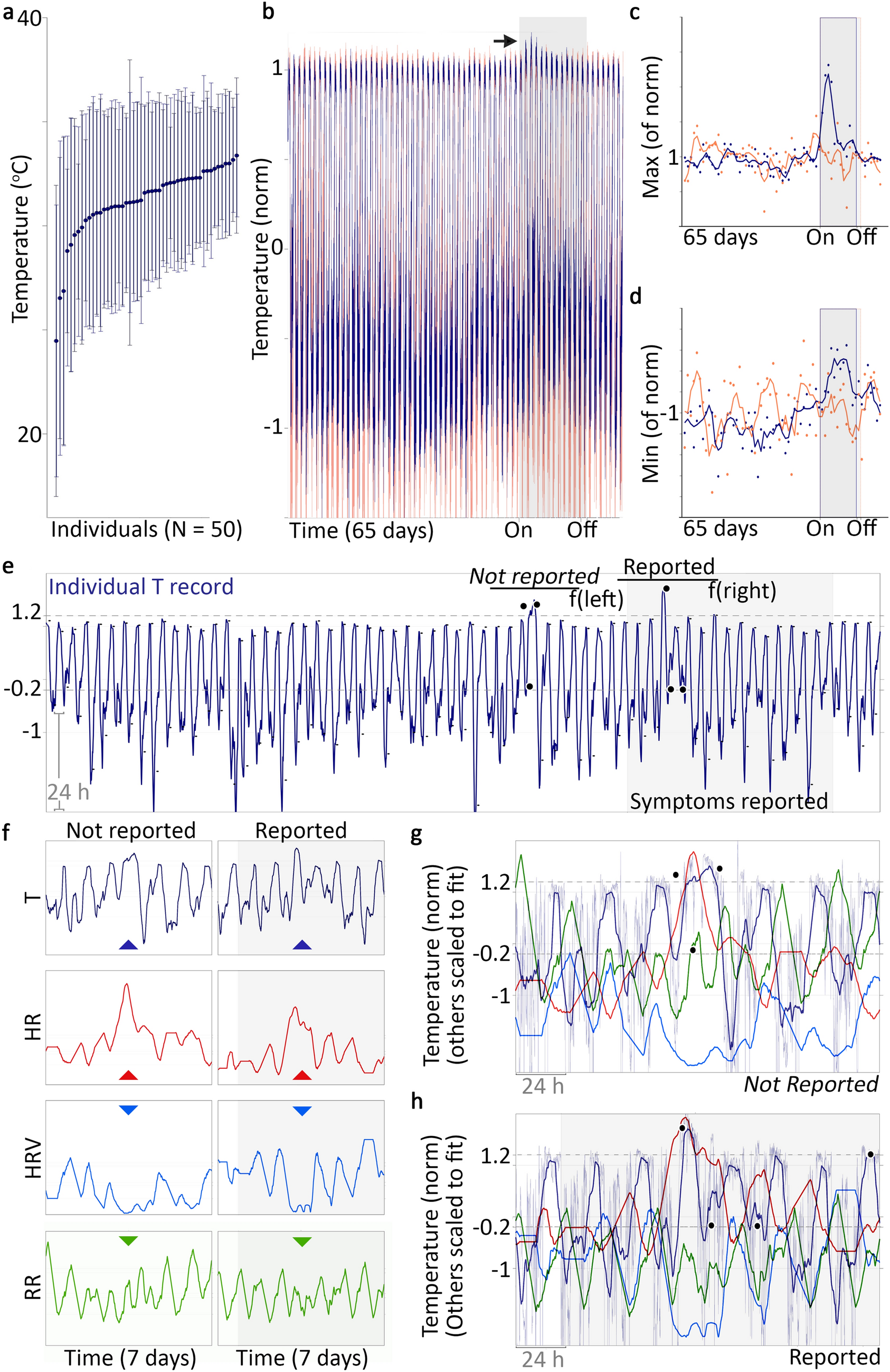

Figure 1
From: Feasibility of continuous fever monitoring using wearable devices
Wearable distal temperature sensors are suitable for developing digital biomarkers for fever with and without paired symptom reports. 50 individuals (a) display a wide range of temperatures (inter-individual means ± standard deviation) both during baseline (dark blue) and symptom report window (pail lines); there is a small but significant difference between the two sets of means. Having been normalized (norm) by individual range (see “Methods”), the mean 65-day temperature profile for individuals reporting fever (purple) and those not reporting fever (orange) reveal an apparent rise in maximum finger temperature (T) in fever-reporting cases near the beginning of the symptom window (black arrow; symptom window: grey box, mean duration for the whole population). Norm daily maximum (c) and minimum (d) T highlights changes in both that correspond to fever onset report. Such cases informed the construction of digital biomarkers in the form of thresholds for daily max and min that identify fever-like days. An example T record (e) with fever-like days identified by exceeding these thresholds before onset of symptom report (e; black dots represent daily min and max above thresholds) has similar changes in heart rate (HR), HR variability (HRV), and respiration rate (RR), to the reported fever event (f by variable, and g,h with overlay, respectively). (f–h) All lines are smoothed by 360 min radius, displaying the same smoothing used to generate median minimum and maximum values for each day. Faded blue line in (g,h) is the raw T (1 point/min).
