Figure 3
From: Failure mechanism of TRSS mode in landslides induced by earthquake

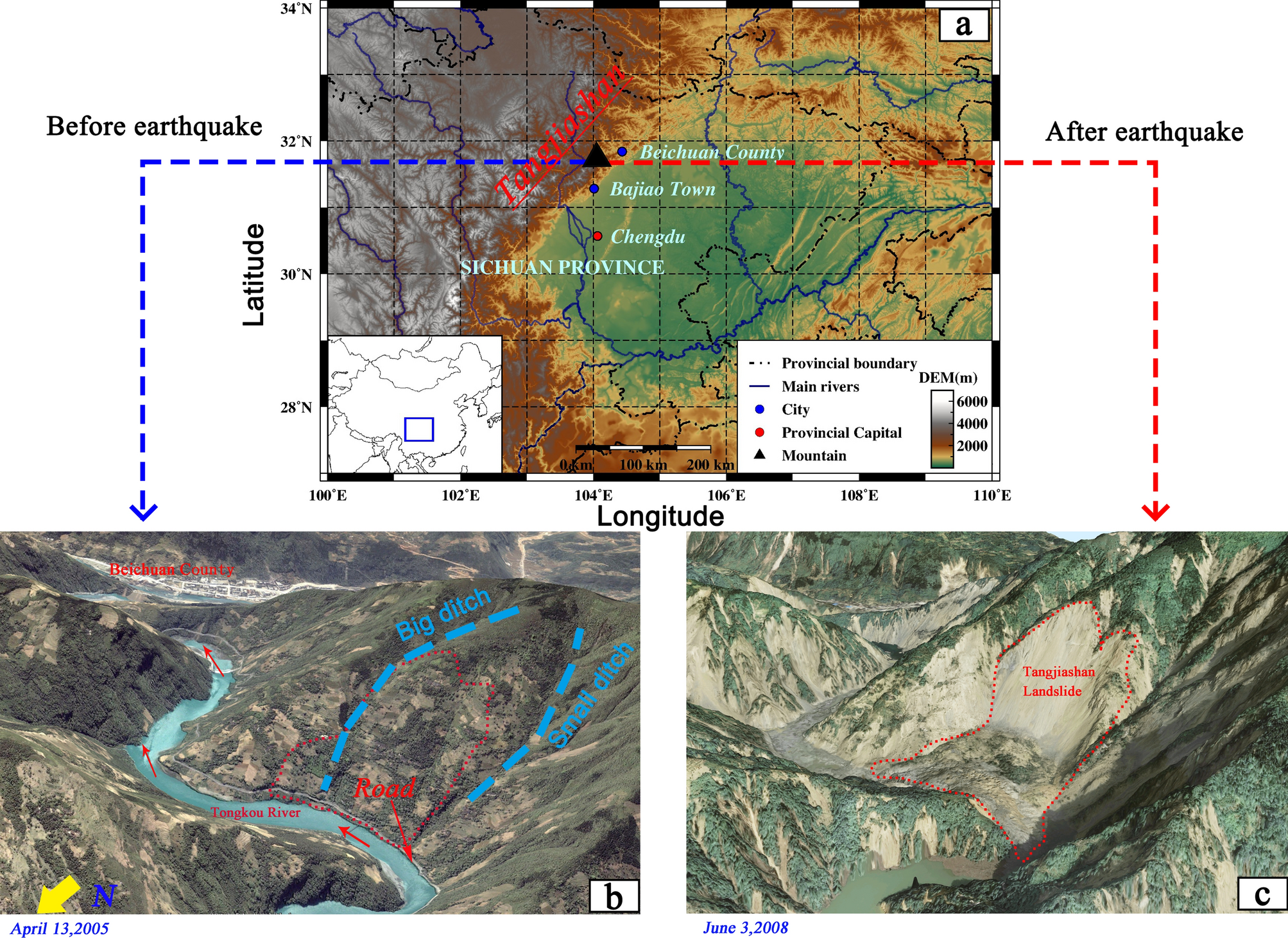

The digital elevation model and remote sensing model of the research zone: (a) location of the Tangjiashan landslide; (b) before the earthquake (from upstream); (c) after the earthquake (from upstream). The gmt-5.4.5 (https://github.com/GenericMappingTools/gmt/releases/tag/5.4.5) was used to generate the (a), and Google Earth Pro 7.3 (https://www.google.com/intl/en/earth/) was used to generate the (b,c).
