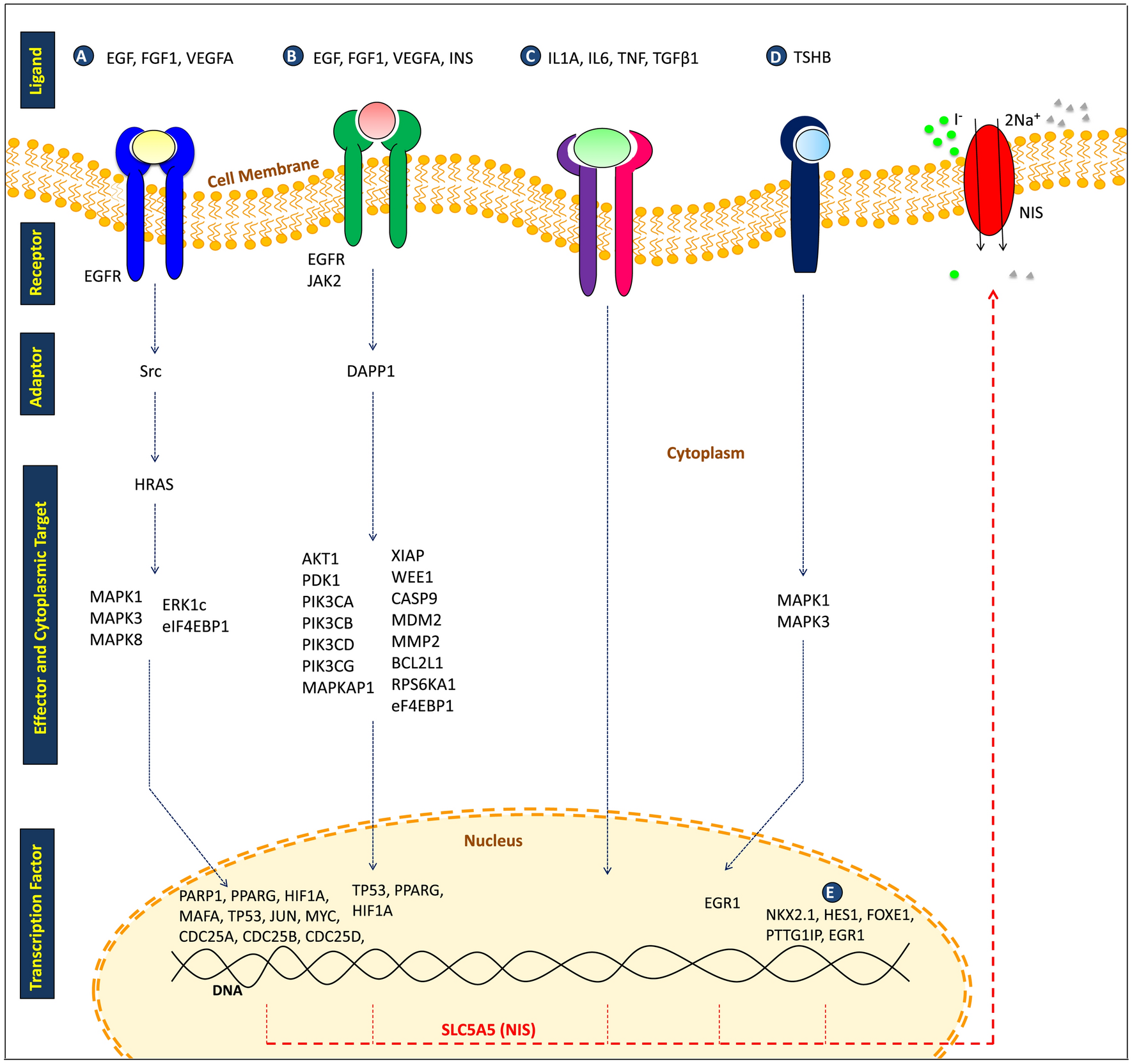

Figure 2

Several proteins of the four signaling pathways, including MAPK (A), PI3K/AKT (B), TGFβ/SMAD (C) and TSH/TSHR (D), alongside a few transcription factors (E) with a role in the regulation of NIS expression in ATC from the list of 167 input proteins, also appeared in top-20 lists of centrality indices.
