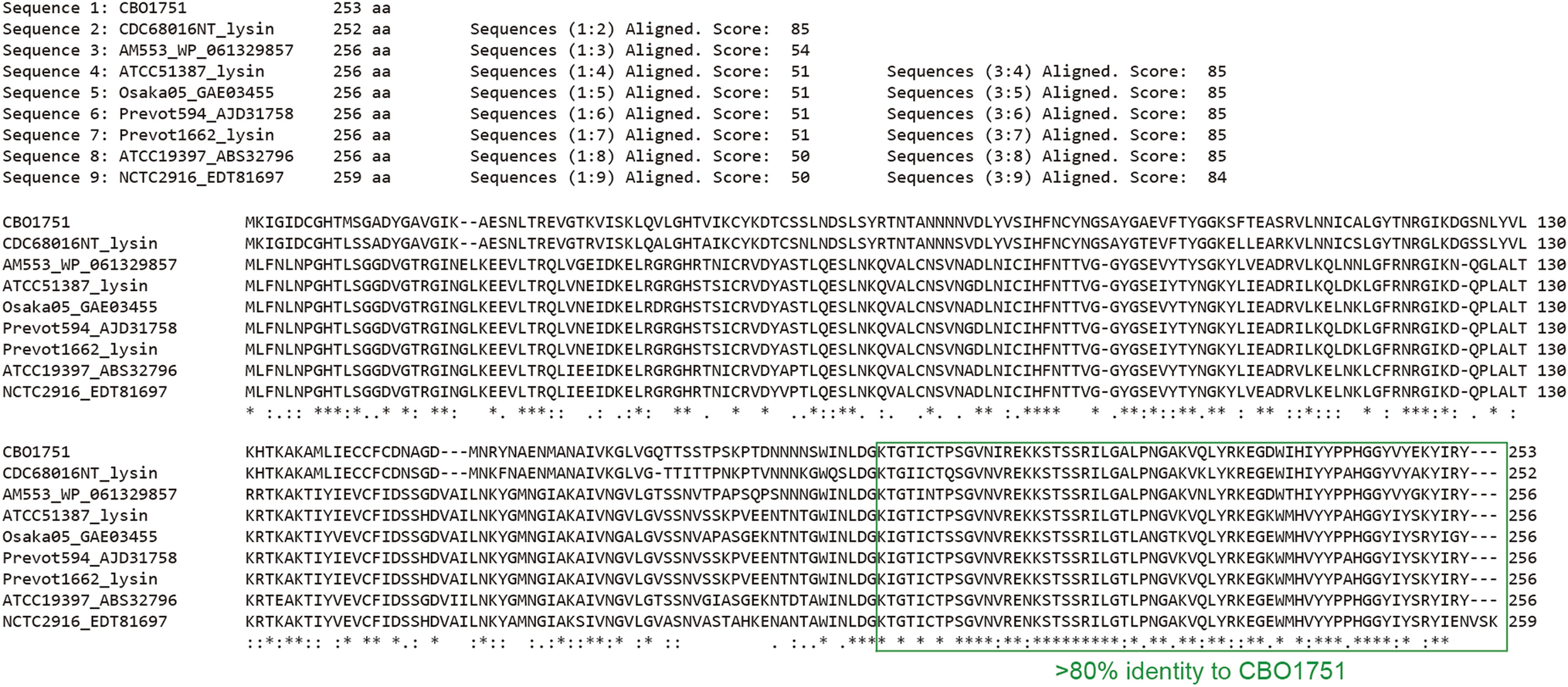

Figure 5
From: Phage lysin that specifically eliminates Clostridium botulinum Group I cells
Amino acid sequence alignment of CBO1751 and putative lysins of Clostridium botulinum CDC68016NT (LAGL01000000, contig00983, nt 2654–3412), AM553 (WP_061329857), ATCC51387 (LAGD01000000, contig00030, nt 5143–5913), Osaka05 (GAE03455), Prevot594 (AJD31758), Prevot1662 (LAGM01000000, contig00035, nt 5087–5857), ATCC19397 (ABS32796) and NCTC2916 (EDT81697). Sequences encoding putative CBDs are indicated in a green box.
