Figure 7 | Scientific Reports

Figure 7

From: Molecular changes tracking through multiscale fluorescence microscopy differentiate Meningioma grades and non-tumoral brain tissues

Figure 7

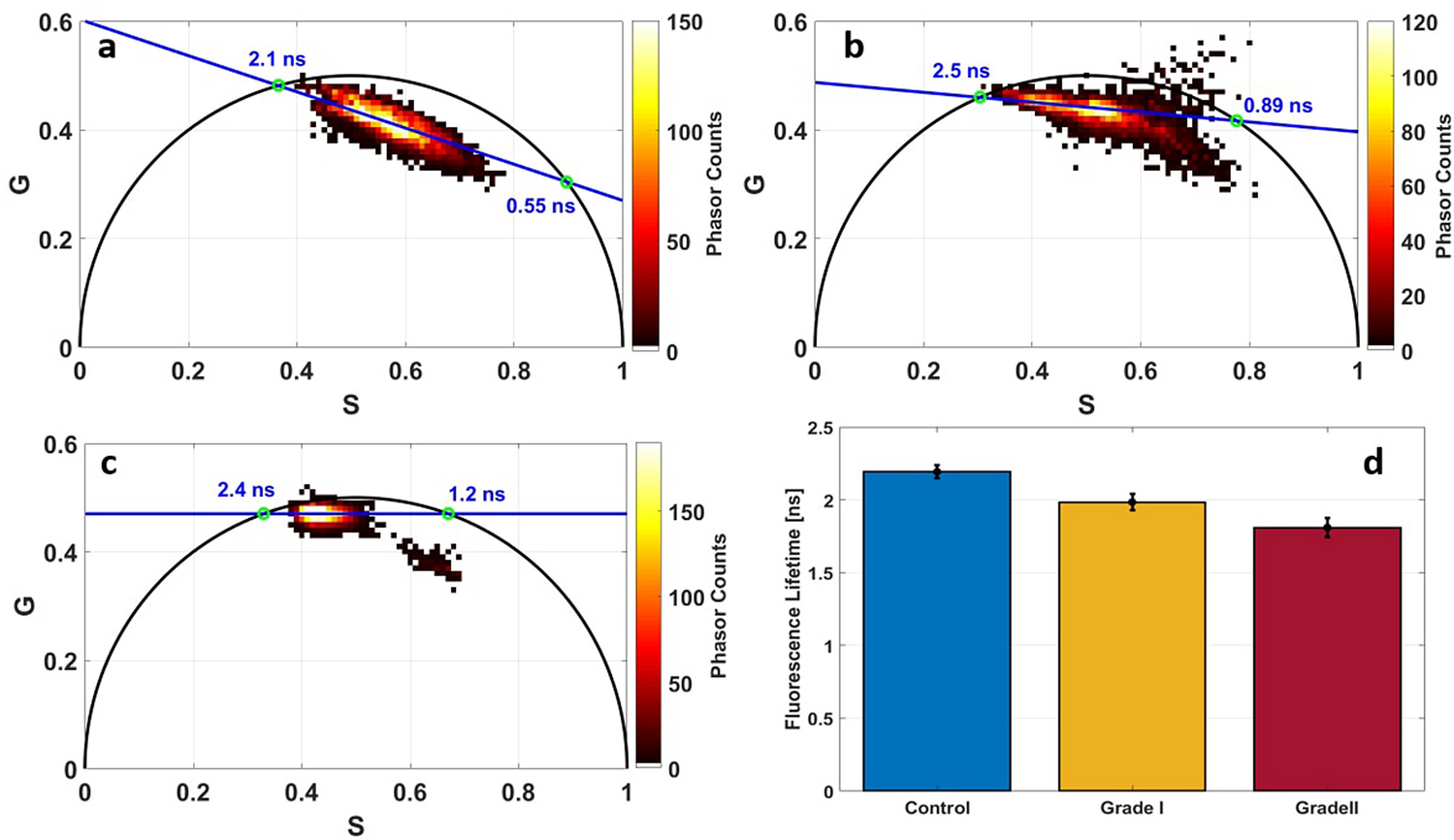

Fluorescence lifetime analysis of FAD (a–c) and NADH (d). Phasor FLIM histogram of FAD using 810 nm as excitation wavelength for control (a), grade I meningioma (b) and grade II meningioma (c), free and protein-bound FAD lifetime values are drawn as green circles intersecting with the universal circle; mean lifetime histogram of protein-bound NADH at 810 nm for control, grade I and grade II meningioma.
