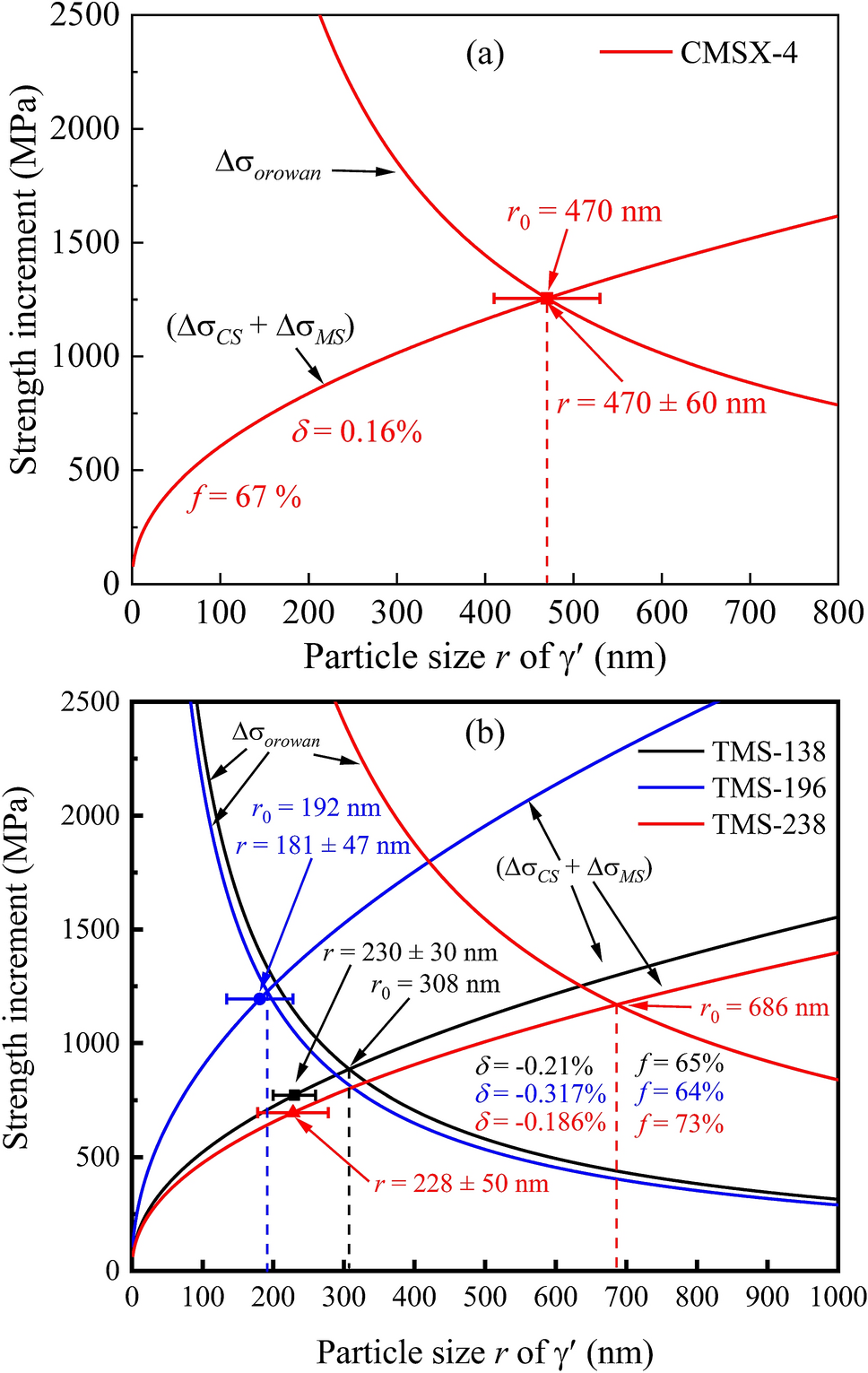

Figure 2

Computations of (Δσ_CS + Δσ_MS) and Δσ_orowan as a function of particle size r of γ′ for the CMSX-4 (a) and TMS-138, TMS-196, and TMS-238 superalloys (b), in which the optimal particles sizes (r₀) and the experimentally-measured r values, as well as the volume fraction f of γ′ precipitates are also marked for each alloy.
