Figure 5
From: Efficient radiational outcoupling of electromagnetic energy from hyperbolic metamaterial resonators

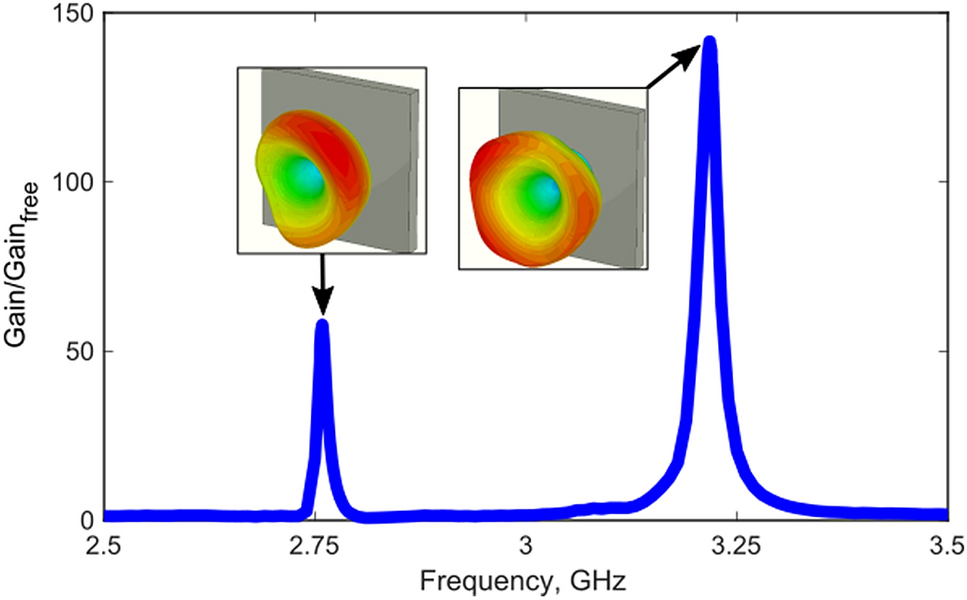

Normalized gain spectra for the pair of chosen frequencies. The normalization is the ratio of gain, obtained for the device with circular array of spheres and without it. Insets—far-field radiation patterns.
