Figure 9

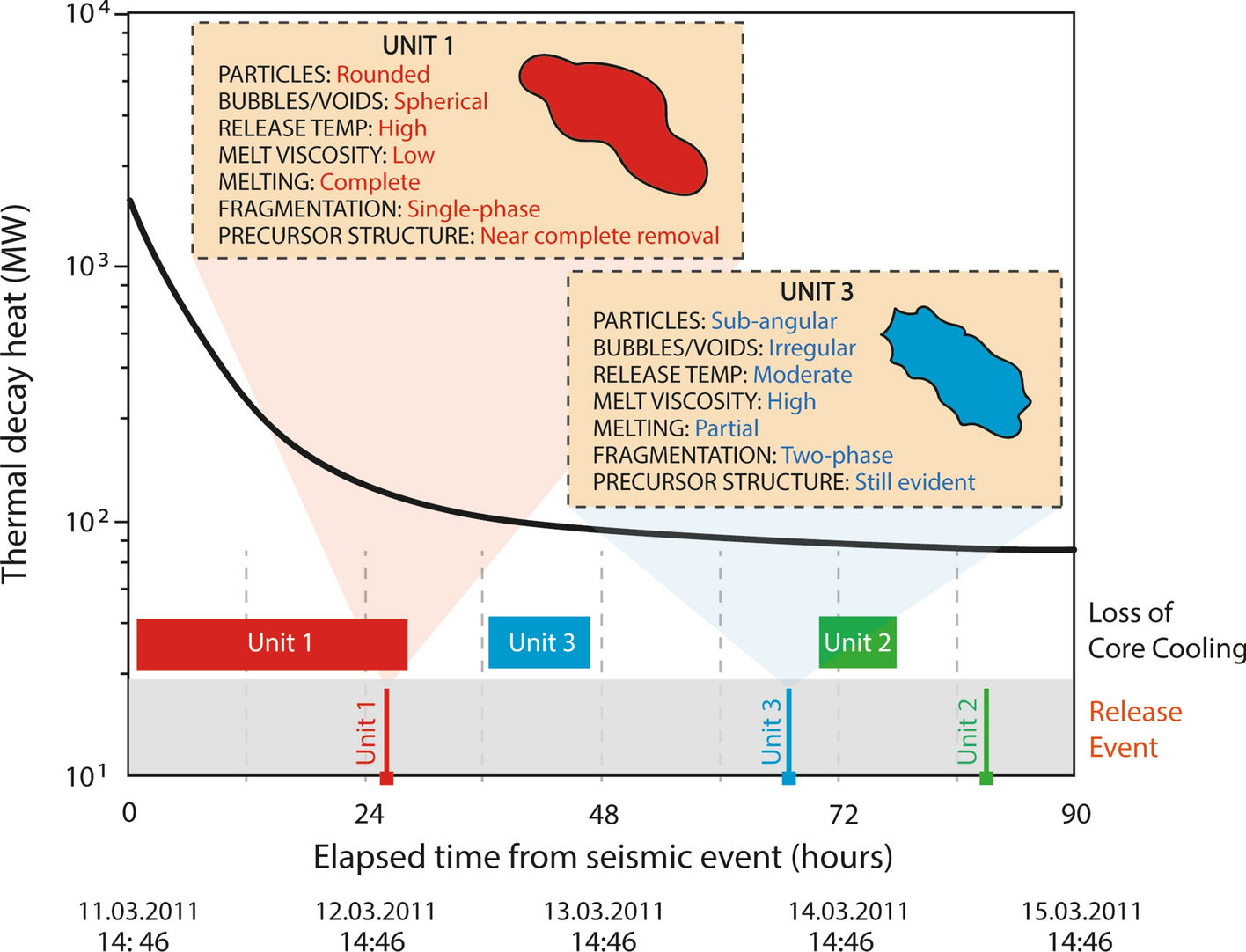

Schematic representation of reactor Unit 1 and Unit 3 particulate formation chronologies, alongside each suites resultant structural (internal and external) characteristics, and as observed during this study, the invoked conditions of formation.
