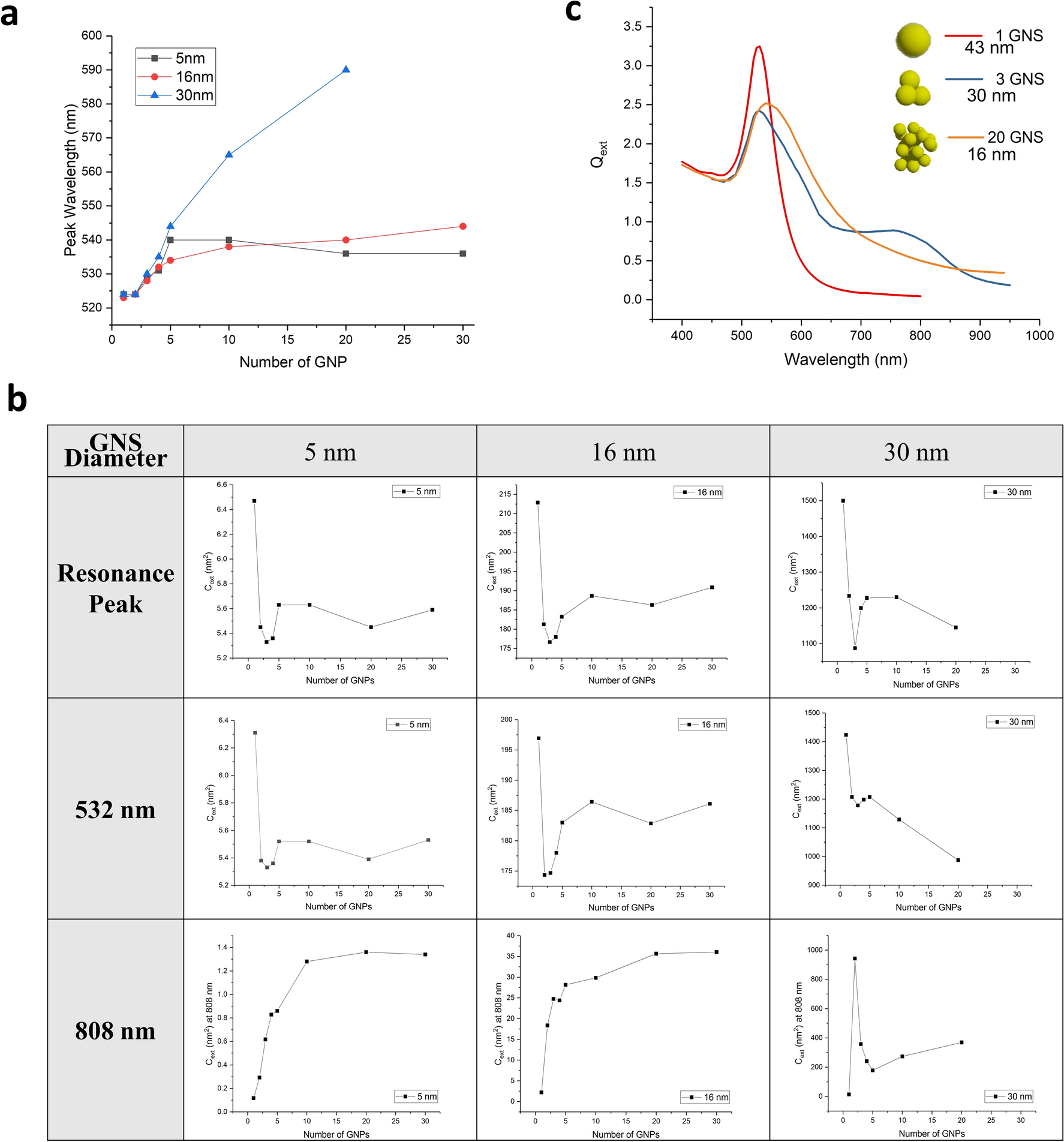

Figure 2
From: Aggregation affects optical properties and photothermal heating of gold nanospheres
(a) Plasmon resonance peak of aggregated GNP. The larger the aggregation size and the larger the GNP diameter, the more red shifted the aggregated cluster will be. (b) Averaged per-particle extinction cross-section plots of 5, 16, and 30 nm diameter GNP aggregations at the resonance peak (532 nm (green laser heating) and 808 nm (NIR laser heating)). (c) To explore the way to generate the most heat by the same amount of gold, the extinction coefficient (Qext) of 1, 3, and 20 particle clusters with very close effective radius (< 1% difference) are compared. We can see the single GNP has the highest extinction at resonance peak, while an aggregation cluster with larger number of GNP is slightly better than the small cluster.
