From: Weather radar detection of planetary boundary layer and smoke layer top of peatland fire in Central Kalimantan, Indonesia

Figure 6

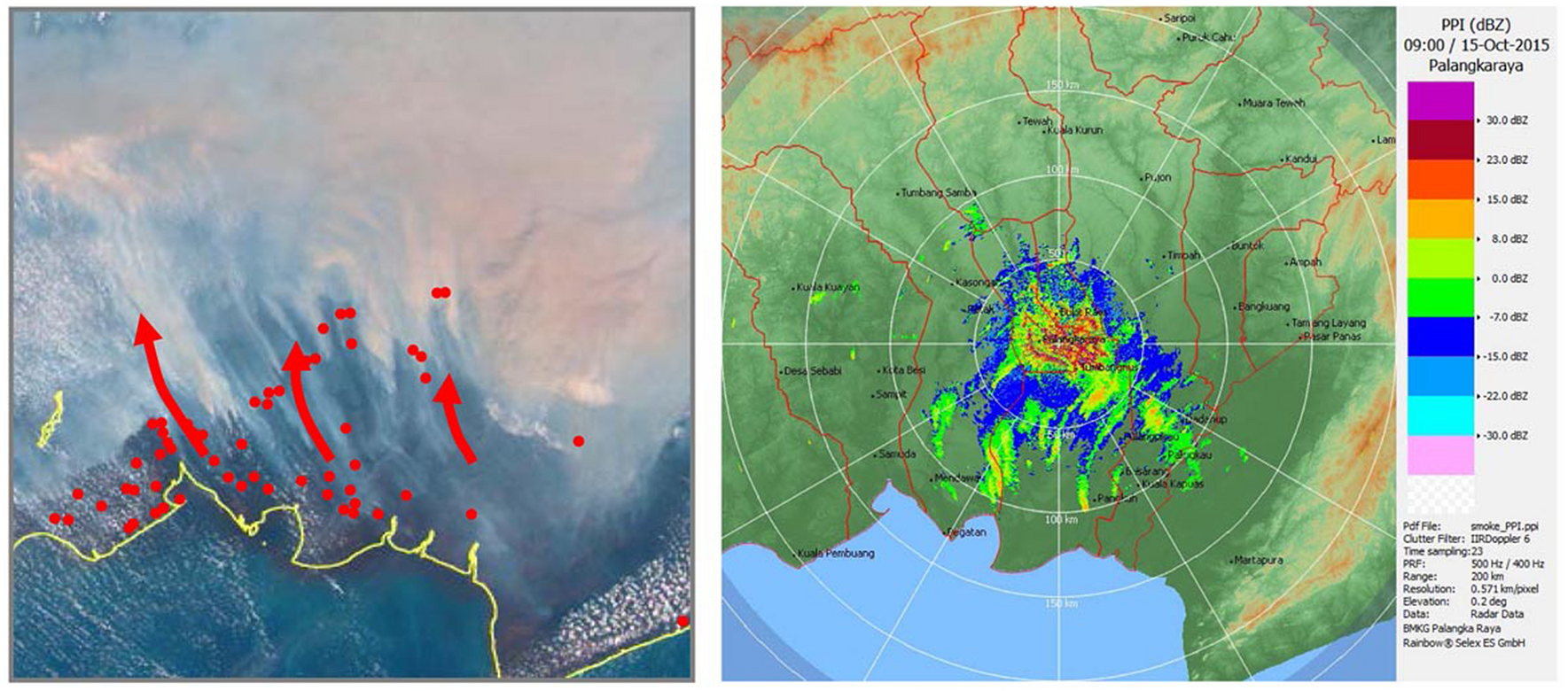

Right: Radar echo image at 09Z(16LT), 15 October 2015. Left: Smoke plumes are observed by AHI/HIMAWARI-8/JMA satellite. Red dots are MODIS/NASA fire hotspots. Red arrows are forward trajectories at 1000 m altitude using HYSPLIT MODEL/NOAA. (Rainbow 5, https://www.leonardocompany.com/en/products/rainbow-5-application-software), (Power Point 2019).
