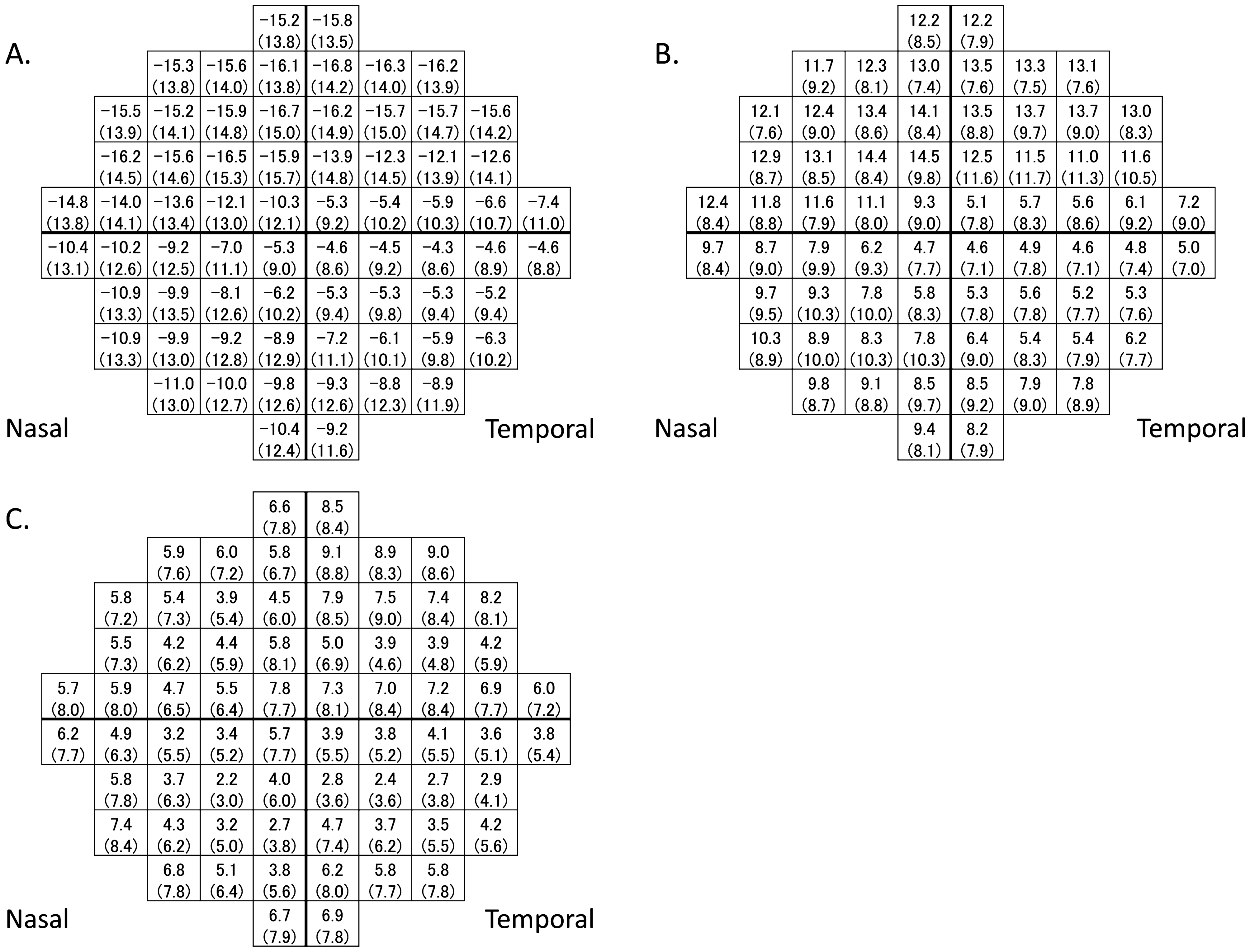

The predicted TD values using ResNet model. A. The mean (standard deviation) TD values at each test point with the actual HFA 10-2 test. B. The MAE (standard deviation) of the predicted TD values using the ResNet model without correction with HFA 24-2 test data at each test point. C. The MAE (standard deviation) of the predicted TD values using the ResNet model, with correction using the HFA 24-2 data at each test point. The schematic is representative of the right eye. HFA Humphrey Field Analyzer, MAE mean absolute error, TD total deviation.
