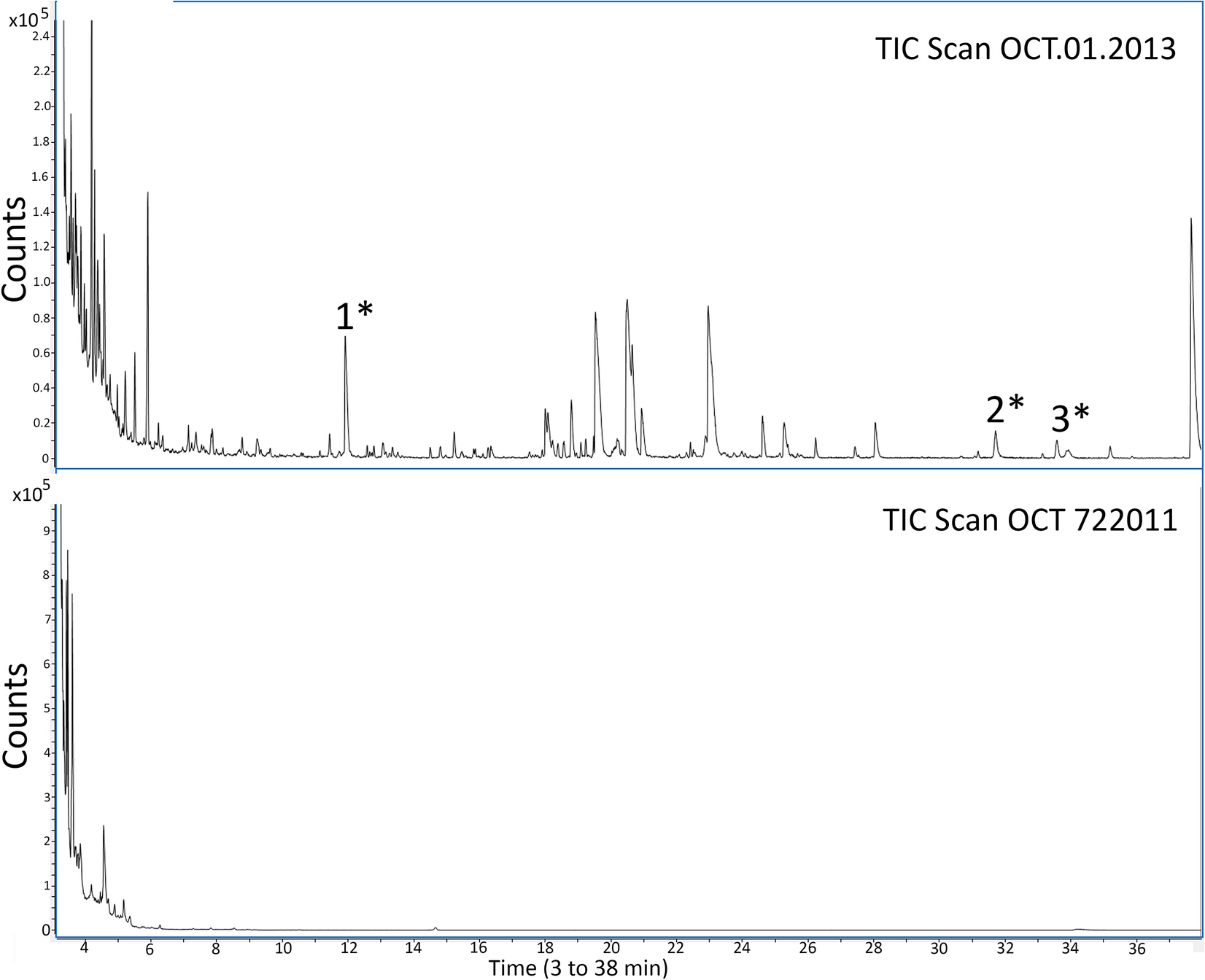

Figure 4

MEROCTANE samples total ion chromatograms (TIC) of from 3 to 38 min (Agilent Mass Hunter qualitative analysis B.07.00). PFO batch OCT 722011 was distributed and used in Spain, no acute toxic cases were reported. PFO batch OCT.01.2013 was distributed in Chile causing acute toxicity in patients. (1) 1,1,1,2,2,3,3,4,4,5,5,6,6-Tridecafluorotridecane, C₁₃H₁₅F₁₃ (2) 1H,1H,7H-Dodecafluoro-1-heptanol, C₇H₄F₁₂O (3) 1H,1H,9H-Hexadecafluoro-1-nonanol, C₉H₄F₁₆O. (*) Identification with Match and R. Match above 700.
