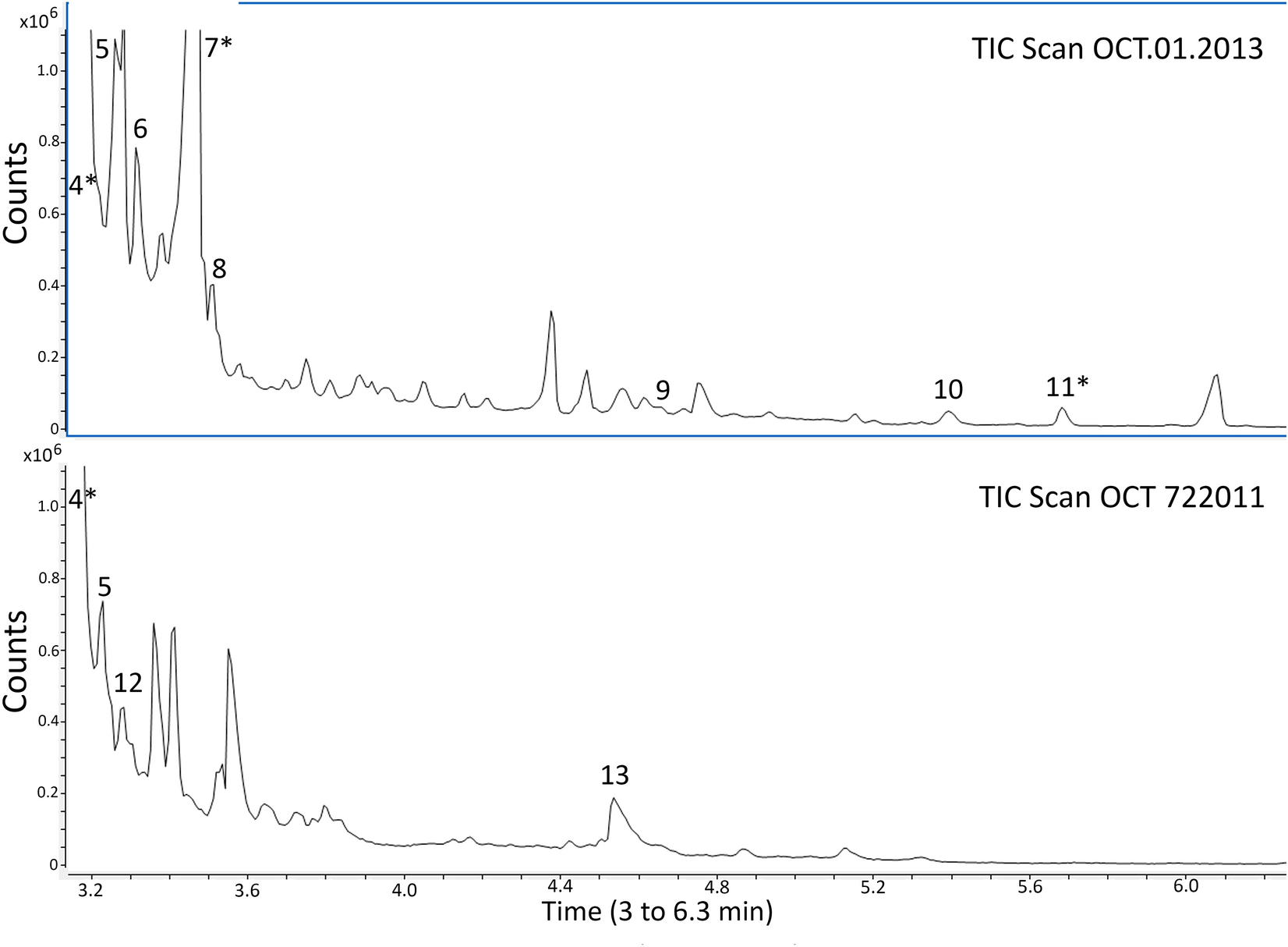

Figure 5

MEROCTANE samples total ion chromatograms (TIC) amplification from 3 to 6.3 min (Agilent Mass Hunter qualitative analysis B.07.00). PFO batch OCT 722011 was distributed and used in Spain, no acute toxic cases were reported. PFO batch OCT.01.2013 was distributed in Chile causing acute toxicity in patients. (4) Perfluorodecalin, C₁₀F₁₈ (5) 1,1,1,2,2,3,3,4,4,5,6,6,6-Tridecafluorohexane, C₆HF₁₃(6) 1H,1H,11H-Eicosafluoro-1-undecanol, C₁₁H₄F₂₀O (7) Perfluoro-N-(4-methylcyclohexyl) piperidine, C₁₂F₂₃N (8) Perfluorododecanoic acid, C₁₂HF₂₃O₂ (9) Pentadecafluoro octanoic acid, methyl ester, C₉H₃F₁₅O₂ (10) 1,1,1,3,3,3-Hexafluoropropane, C₃H₂F₆ (11) Pentadecafluorooctanoic acid, isopropyl ester, C₁₁H₇F₁₅O₂ (12) Methyl 2,2,3,3,4,4,5,5,6,6,7,7-dodecafluoroheptanoate, C₈H₄F₁₂O₂ (13) 1H,1H-Perfluoro-1-heptanol, C₇H₃F₁₃O. (*) Identification with Match and R. Match above 700.
