Figure 5

From: Molecular basis of the interaction of the human tyrosine phosphatase PTPN3 with the hepatitis B virus core protein

Figure 5

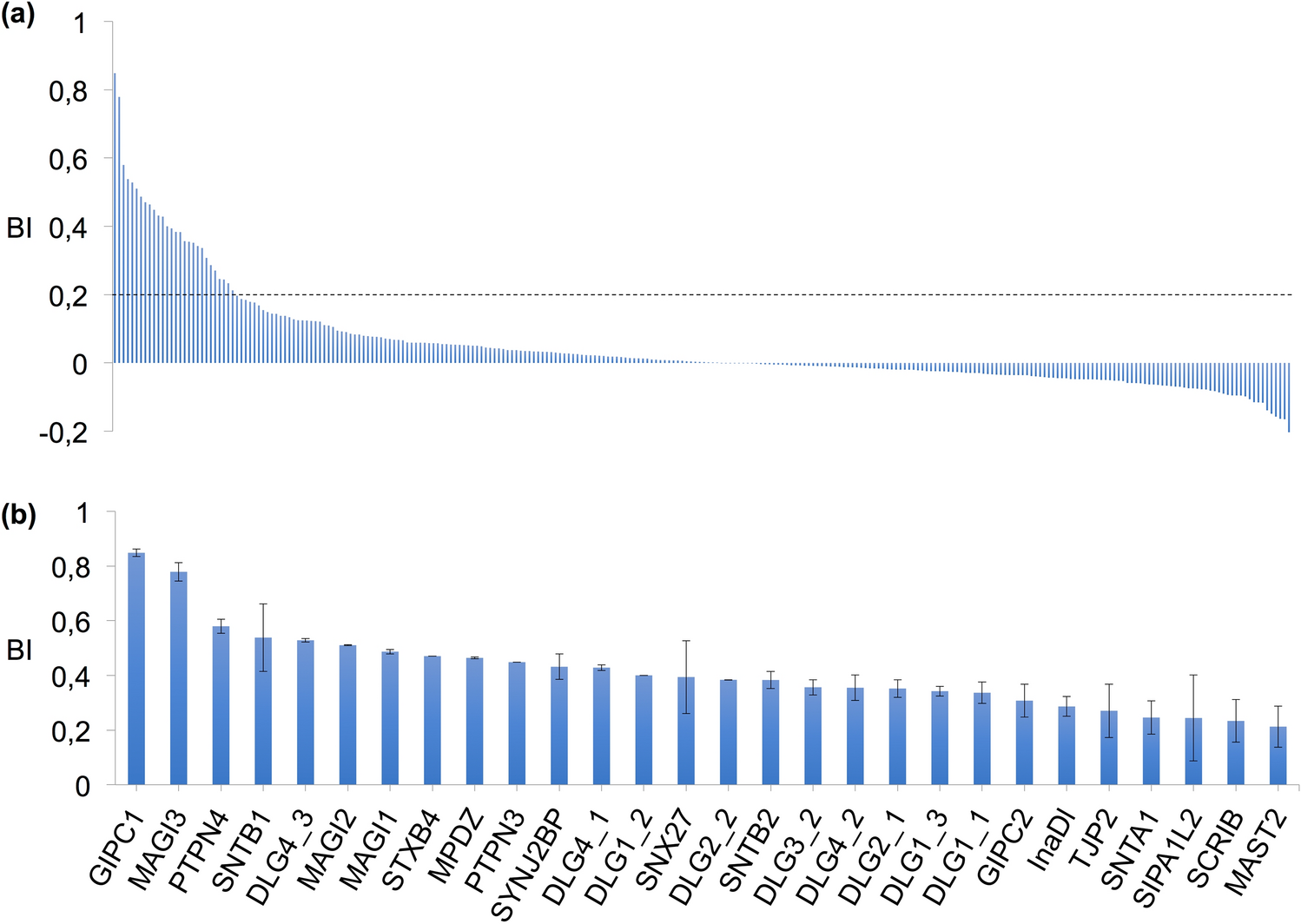

PDZome binding of HBc investigated by in vitro holdup protein-peptide binding assays. (a) PDZome-binding profile of PBM-HBc. PDZ domains are ranked on the basis of their BIs for the PBM-HBc peptide. A dashed line indicates the cut-off for a significant PDZ–PBM interaction (BI > 0.2). (b) Zoom-in on the 28 HBc binders with a BI > 0.2. The data and error bars are representative of two independent experiments.
