Figure 8
From: An encryption–decryption framework to validating single-particle imaging

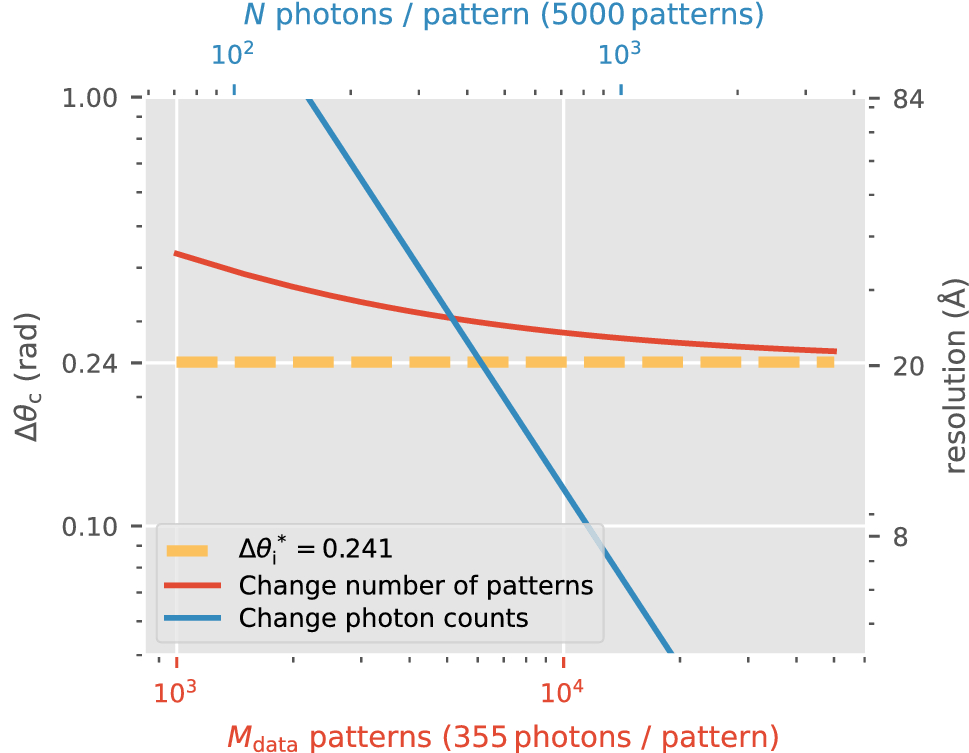

This figure shows how \(\Delta \theta _\text {c}\) changes by increasing number of patterns (red curve, with \(N\approx 355\)) or number of photons per pattern (blue curve, with \(M_{\text {data}}=5000\)). The measure of orientation inconsistency given the ground truth, \(\Delta \theta _\text {i}^*\) (yellow), is computed for \(N\approx 355\). The right axis shows the relation to spatial resolution according to Eq. (7) (\(2\sigma\) criterion).
