Figure 1
From: An optomechanogram for assessment of the structural and mechanical properties of tissues

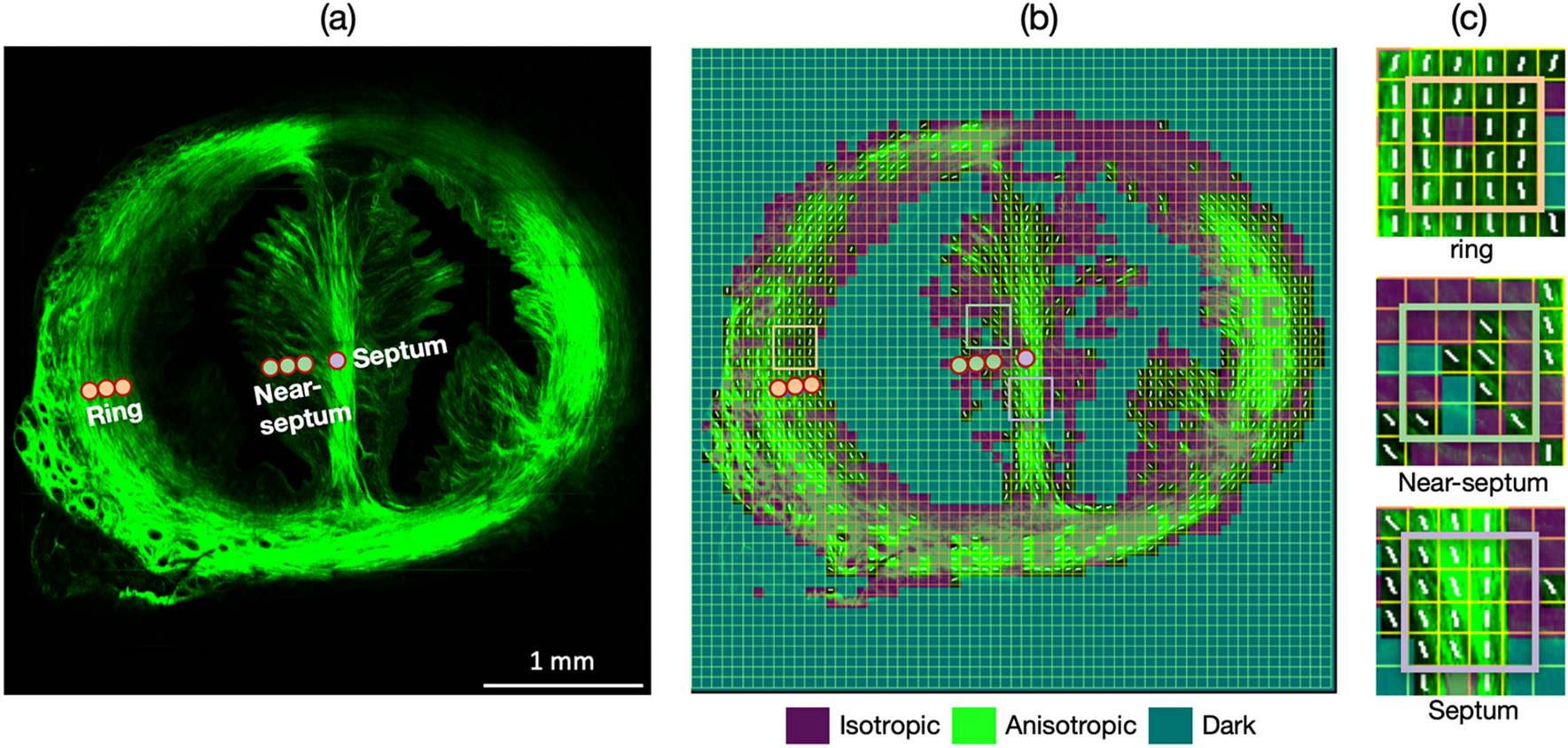

2D FT-SHG analysis of rat cervix tissue. (a) 2D SHG image of the rat cervix and (b) distribution of isotropic, dark, and anisotropic areas over the SHG image. (c) Enlarged images of the ring, near-septum and septum. Colored circles show representative areas that were subsequently captured in 3D. The white lines (b,c) show the orientation of the anisotropic regions.
