From: Inter-body coupling in electro-quasistatic human body communication: theory and analysis of security and interference properties

Figure 6

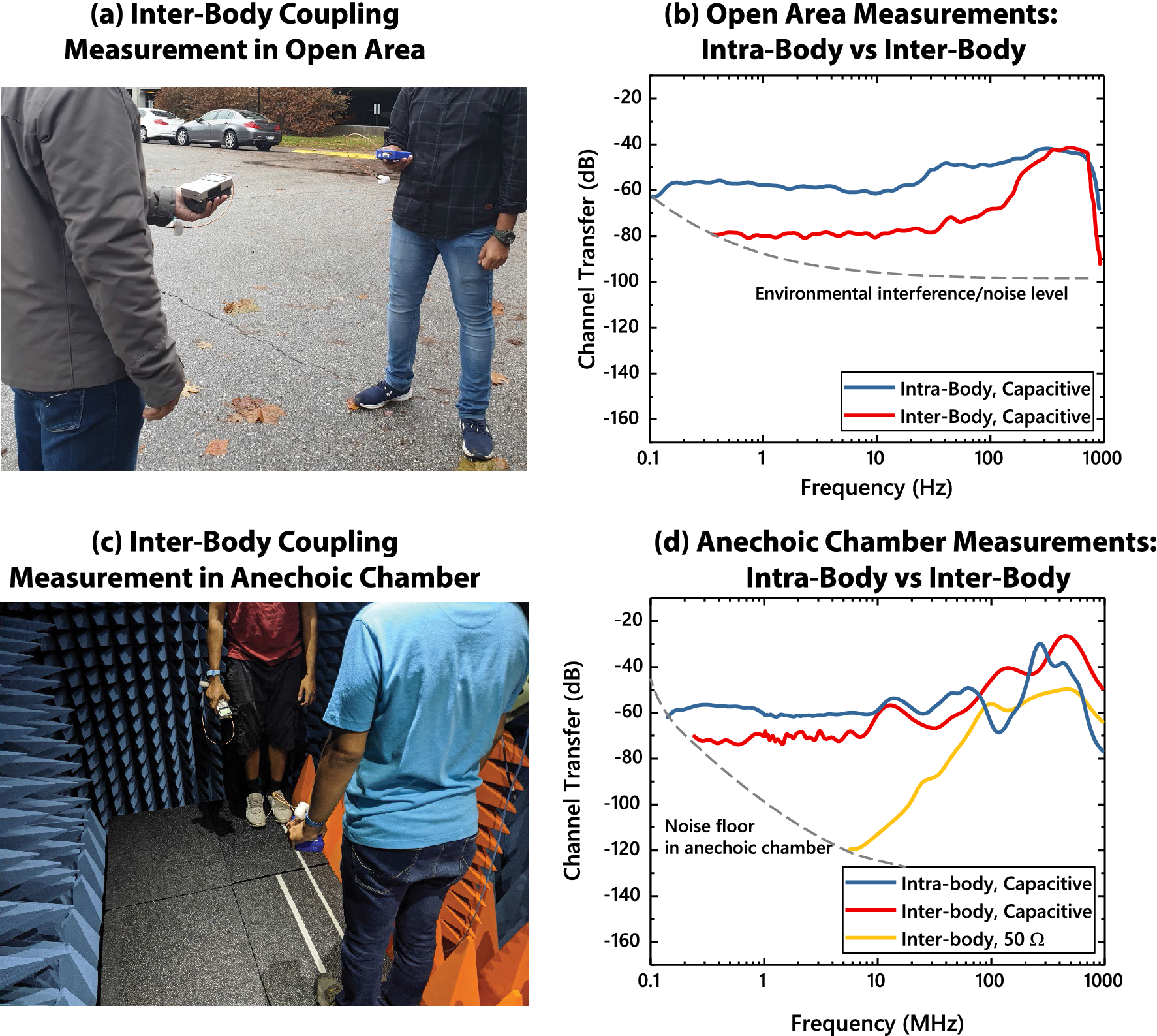

(a) Measurement setup in open-area. The subjects are kept at a distance of 1m for frequency sweep measurements. (b) Experiment results from open-area measurements. Multiple transmitting devices are used to cover the whole frequency range, as shown later in Fig. 9a. (c) Measurement setup inside anechoic chamber. (d) Results from measurements inside the anechoic chamber.
