Figure 16
From: Design of fractional evolutionary processing for reactive power planning with FACTS devices

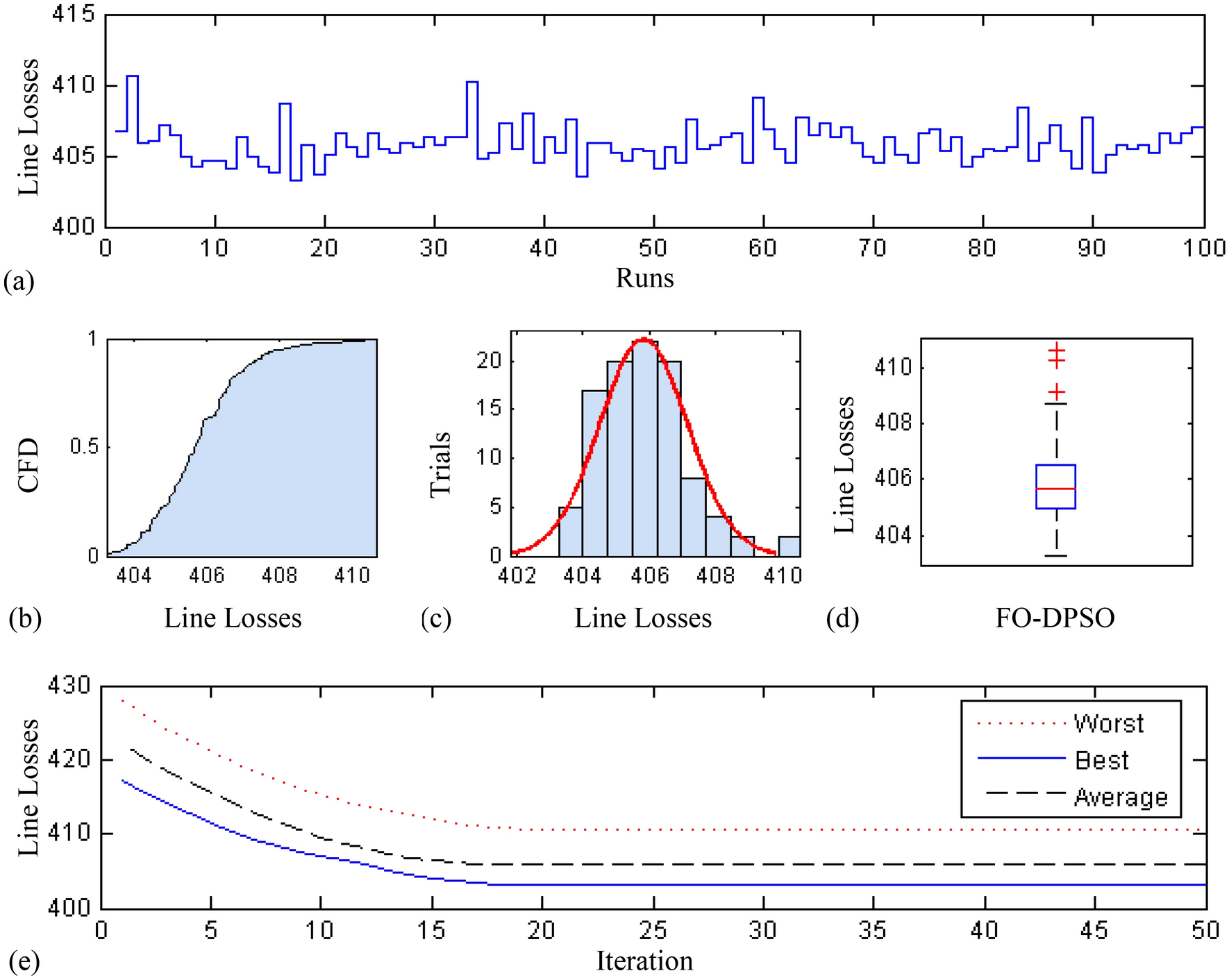

Statistical analysis for 300 bus system: power loss minimization during 100 free runs, (a) minimum fitness comparison, (b) CDF, (c) histogram analysis, (d) fitness boxplot, (e) learning behavior.
