Figure 5
From: An improved time reversal mirror based on standard linear frequency modulation waveform

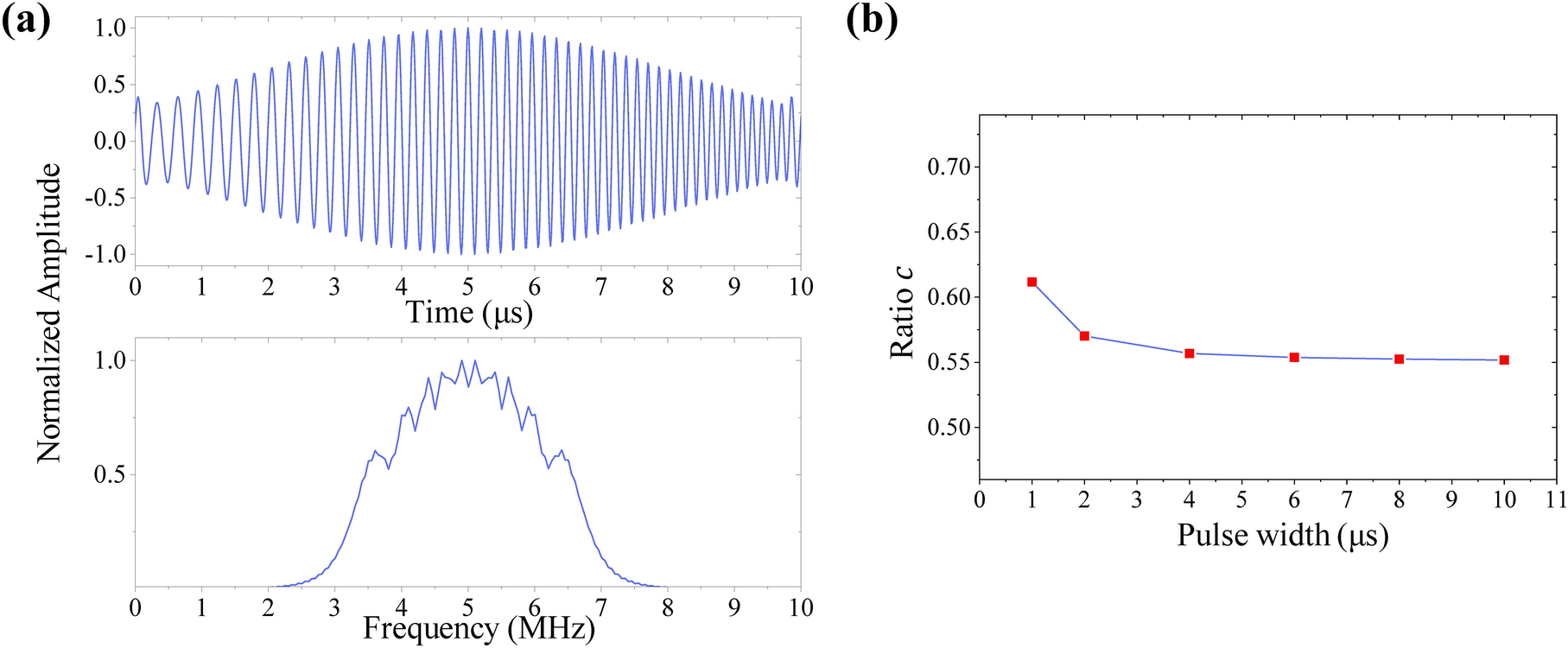

The LFM signal and its corresponding spindle signal. (a) The time domain waveform of the spindle signal and its amplitude-frequency characteristic curve. (b) The relationship between the ratio c of the peak values and pulse width T.
