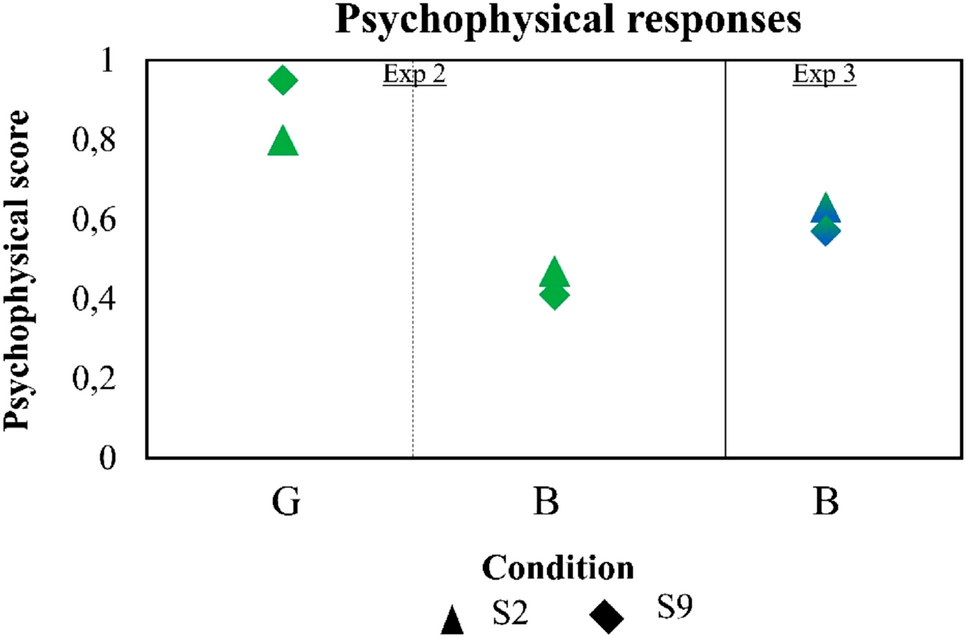

Figure 4
Results from the control experiment using narrow spectral bandwidth stimuli. Normalized psychophysical score of the perceived quality of natural images (555 nm for G, 480 nm for B, 5-nm spectral bandwidth), for experiments equivalent to Exp 2 and Exp 3. Exp 2 Green stands for green stimuli at best focus, Exp 2_B stands for green stimulus defocused by − 0.87 D with respect to the best focus in G, and Exp 3 Blue stands for blue stimulus at the best focus in G. Data are for two subjects (S2, S9).
