Figure 4
From: Identifying the true number of specimens of the extinct blue antelope (Hippotragus leucophaeus)

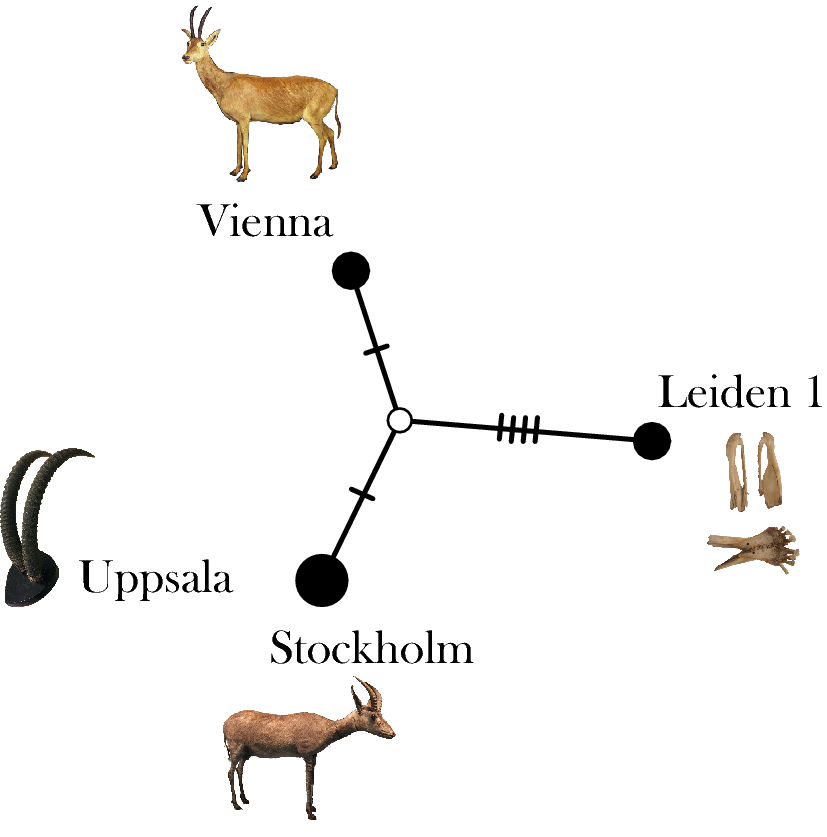

Median joining network of the four blue antelope specimens. The median joining network takes into account only positions of the complete mitochondrial genome (including control region) that are covered in all four specimens, excluding ambiguities (6,300 bp). Dashes and the white circle denote mutational steps and an unsampled haplotype, respectively. The network generated in POPART v1.757 revealed six segregating sites, with the Stockholm and Uppsala specimens being identical in this comparison. Photo credits: Leiden 1: Naturalis Biodiversity Center, the Netherlands; Stockholm: Swedish Museum of Natural History; Vienna: Natural History Museum Vienna; Uppsala: Museum of Evolution.
