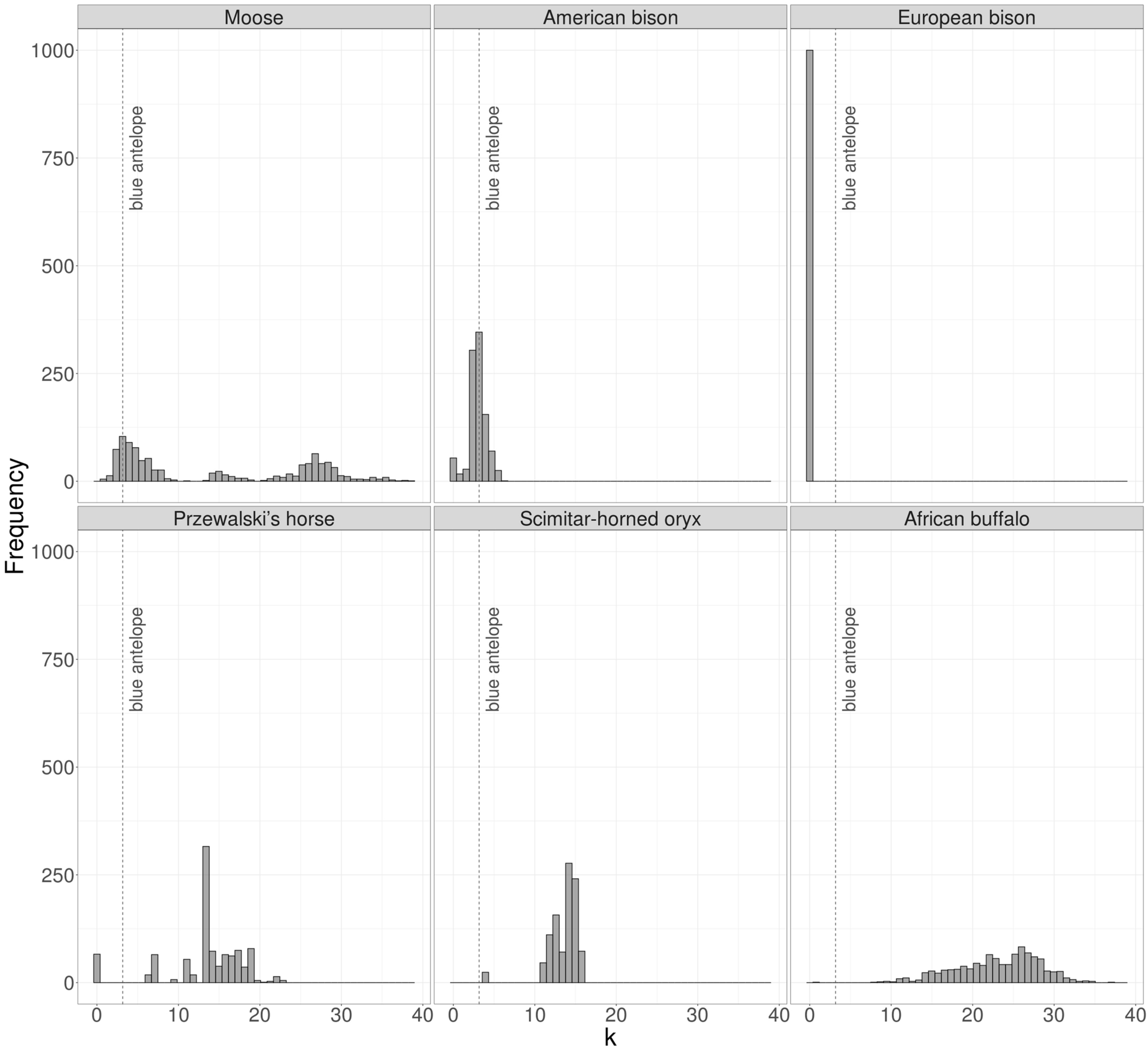

Figure 5
From: Identifying the true number of specimens of the extinct blue antelope (Hippotragus leucophaeus)
Mitochondrial diversity comparison. Mitochondrial diversity of the four blue antelope specimens (dashed line) compared to the distribution of 1,000 replicates of the diversity of four randomly drawn sequences of six wild ungulate species based on the alignment of homologous positions of the mitochondrial genome (6,061 bp in length) (shown with bins of 50, generated in RStudio v1.1.42360 (https://www.rstudio.com/) using R v3.6361 (https://www.R-project.org/)). k represents the average number of substitutions between two individuals.
