Figure 4 | Scientific Reports

Figure 4

From: Dispersal and competitive release affect the management of native and invasive tephritid fruit flies in large and smallholder farms in Ethiopia

Figure 4

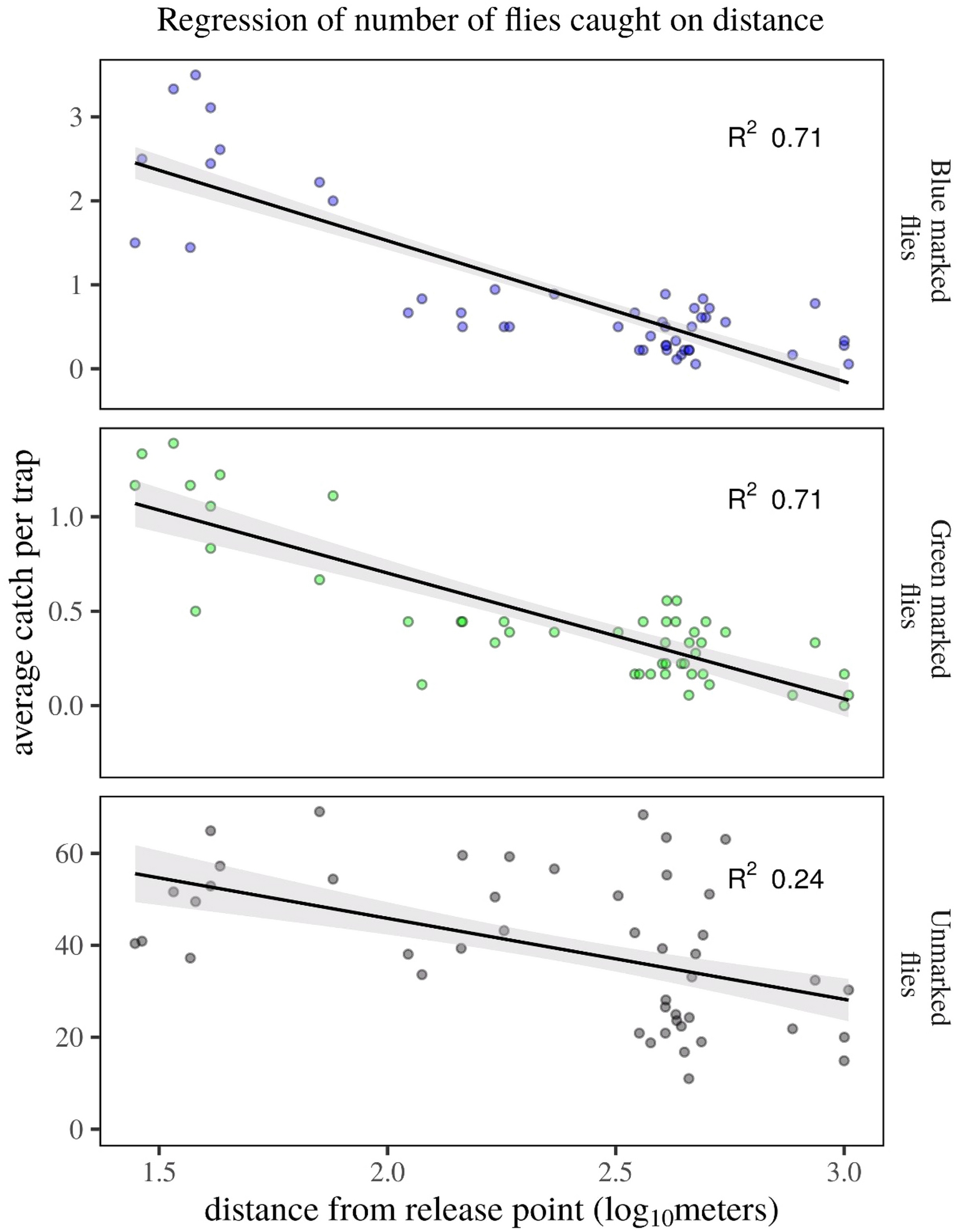

Regression of the number of recaptured B. dorsalis males on distance from the release point. . The number of recaptured flies declined with distance from release point (r2 = 0.71, F(1,46) = 112.7, p < 0.001), both when trapping started immediately after release (blue-marked flies) and when release preceded recapture by 3 days (green-marked flies). As a control, capture of unmarked flies over distance showed a weak correlation (r2 = 0.24, F (1,44) = 13.69, p < 0.001).
