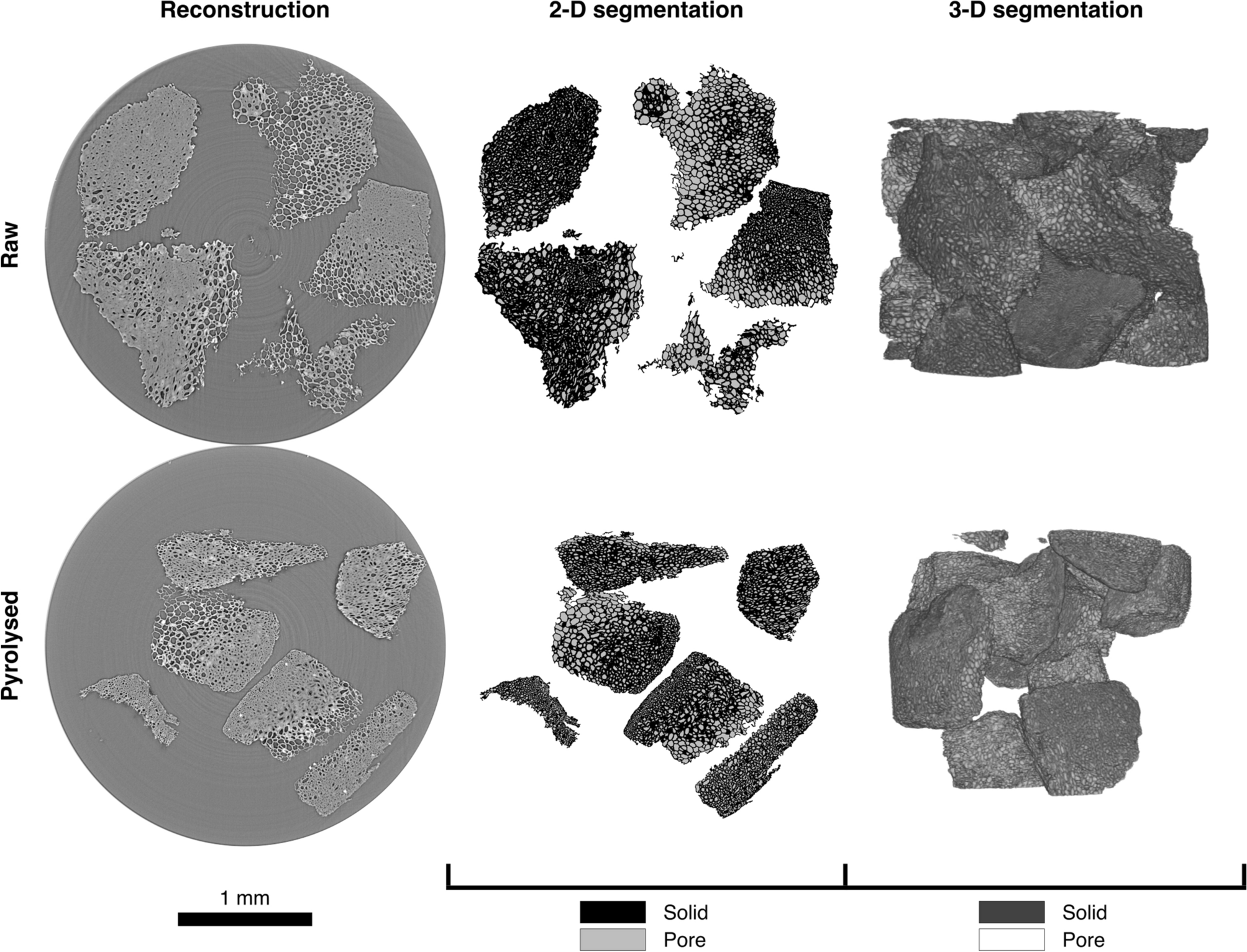

Figure 4
Reconstructed and segmented tomograms and corresponding three-dimensional (3-D) renderings of raw and pyrolysed water-soaked almond shells. Pyrolysed shells were heated at a rate of 6 °C min−1 to a peak temperature of 450 °C and held for 30 min. In 3-D renderings, the scale bar corresponds to the frontmost plane.
