Figure 7

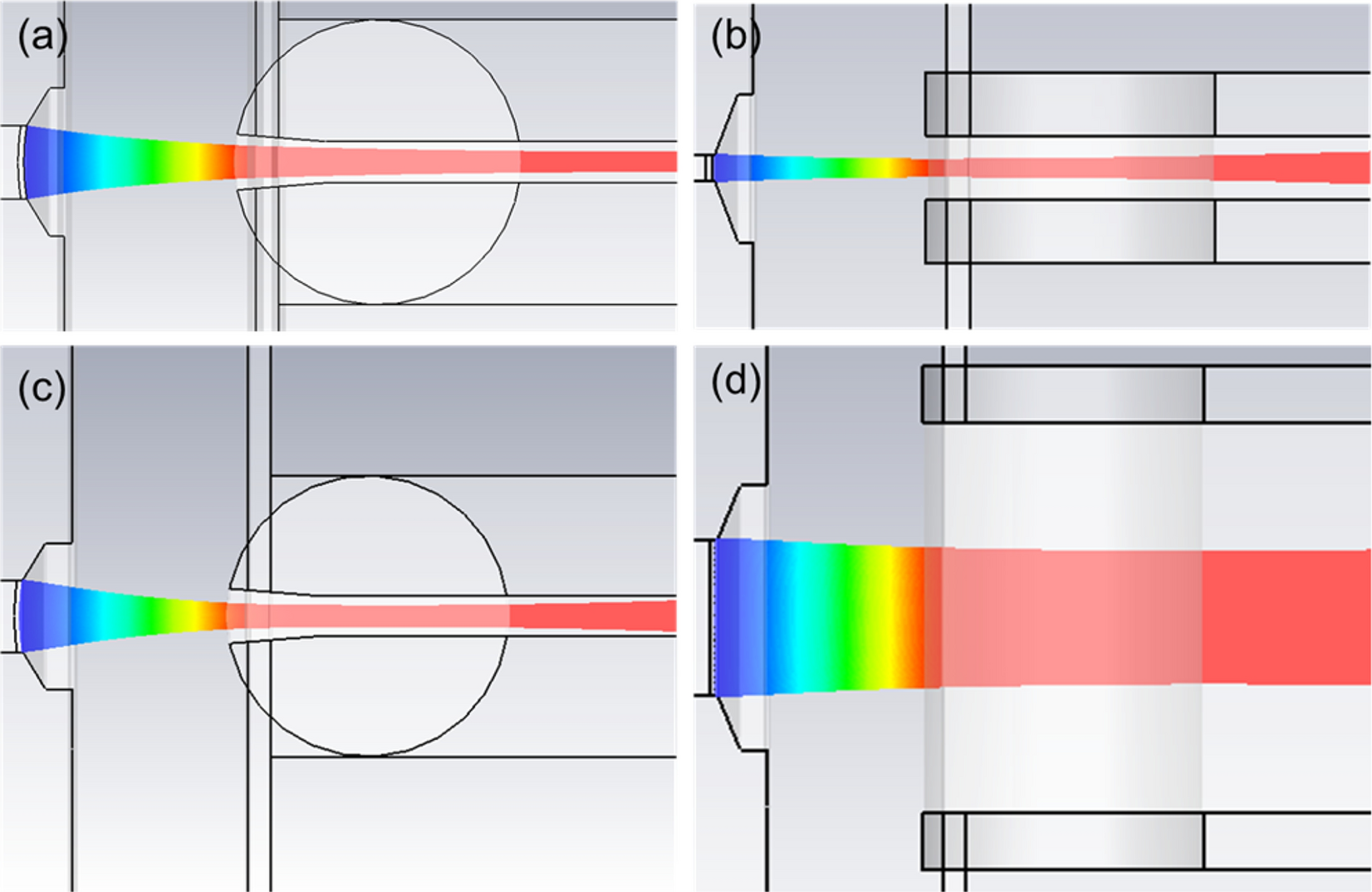

Beam trajectory in two transverse directions for the two models. (a) In the y–O-z plane of Model I. (b) In the x-O-z plane of Model I. (c) In the y–O-z plane of Model II. (d) In the x-O-z plane of Model II.
Figure 7 | Scientific Reports
Beam trajectory in two transverse directions for the two models. (a) In the y–O-z plane of Model I. (b) In the x-O-z plane of Model I. (c) In the y–O-z plane of Model II. (d) In the x-O-z plane of Model II.
