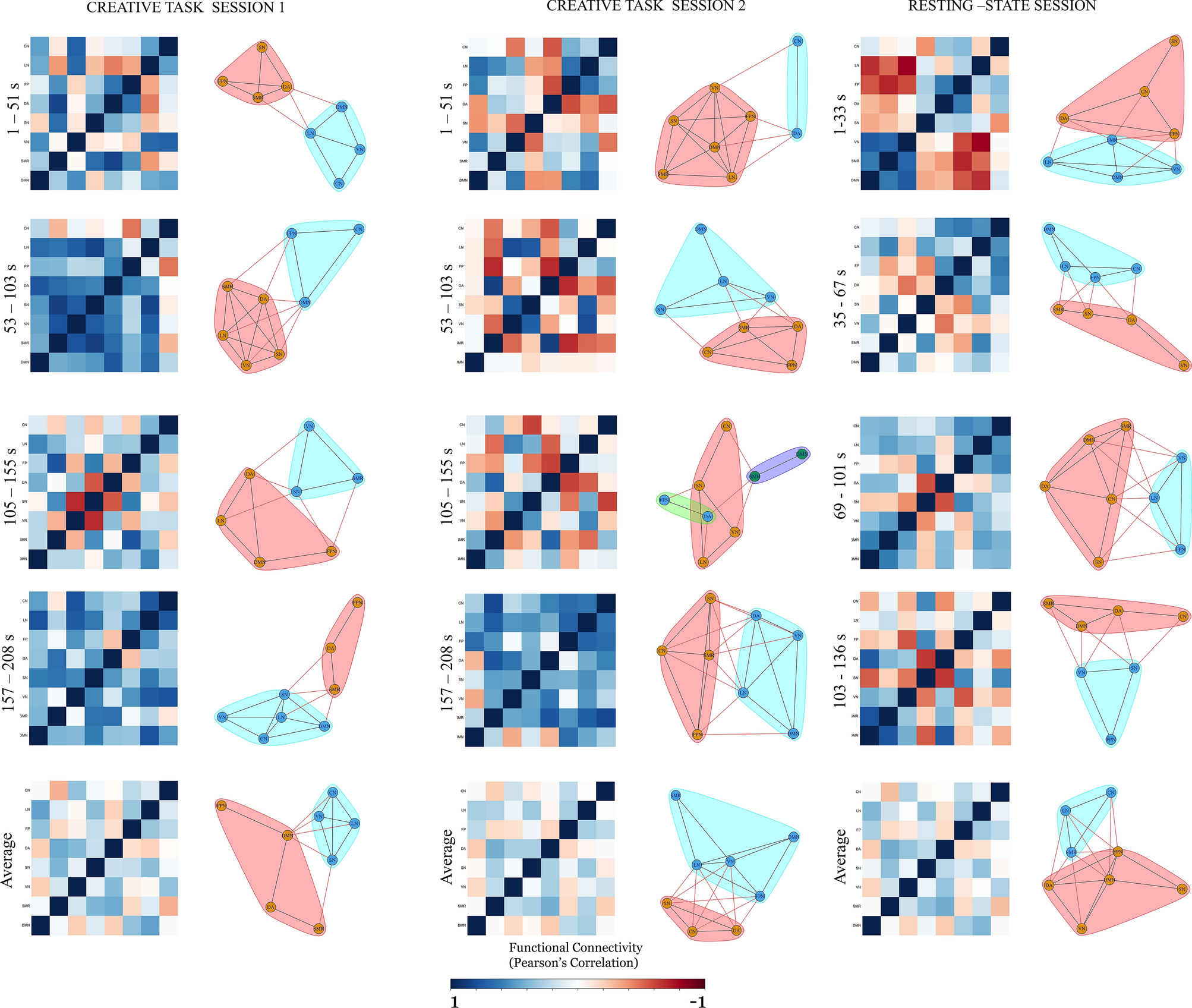

Figure 4
Network-specific dynamic re-configuration of creative brain using sliding window approach (window size = 44 s) for creative task session 1, creative task session 2 and resting-state session. The 32 BOLD time series signals representing 32 ROIs were averaged to form 8 distinct networks. The first column in each session indicates the single windowed correlation map between these times. The bottom row indicates the average of all the first four rows across all the sessions. Second column in every session indicates the graph representation and community detection formed using the fast-greedy algorithm community detection. Each colour indicates community formation for every session, averaged and every windowed correlation map. The edge color here represents the connection within the same community (same edge color of that of the community) or from one community to the other community (edge color of one community indicates the connection from that community to the other). Node Label List: DMN default mode network, FP frontoparietal network, SMR somatomotor network, DA dorsal attention network, SN salience network, VN visual network, LN language network, CN cerebellar network.
