Figure 4

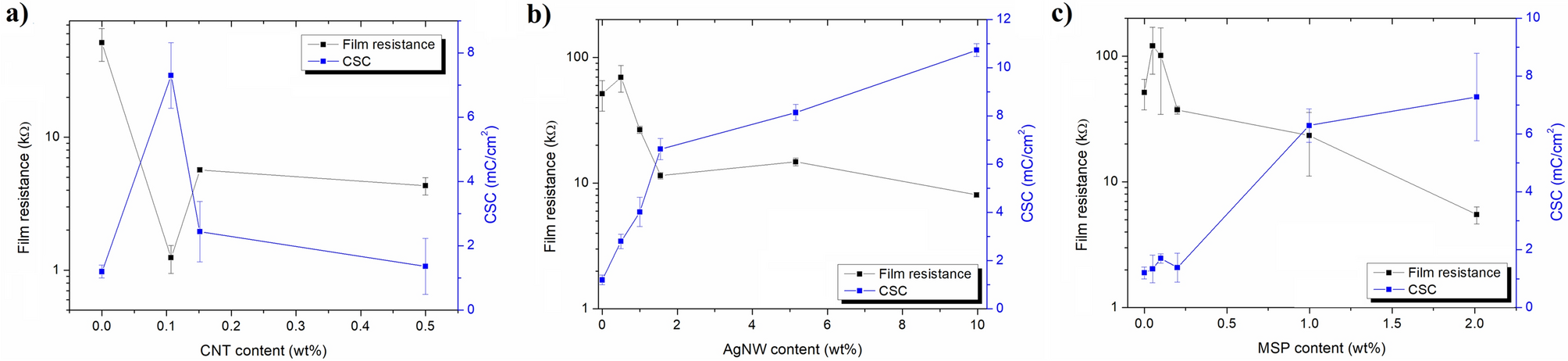

Electrochemical percolation threshold for EDL-based composites. Film resistance/charge storage capacity (CSC) plots of EDL/CNT (a), EDL/AgNW (b) and EDL/MSP (c) composites; n = 3. Film resistance values were determined using an equivalent circuit modelling of EIS data (R₃), while CSC values were calculated from CV curves.
