Figure 1
From: Research on Golay-coded excitation in real-time imaging of high frequency ultrasound biomicroscopy

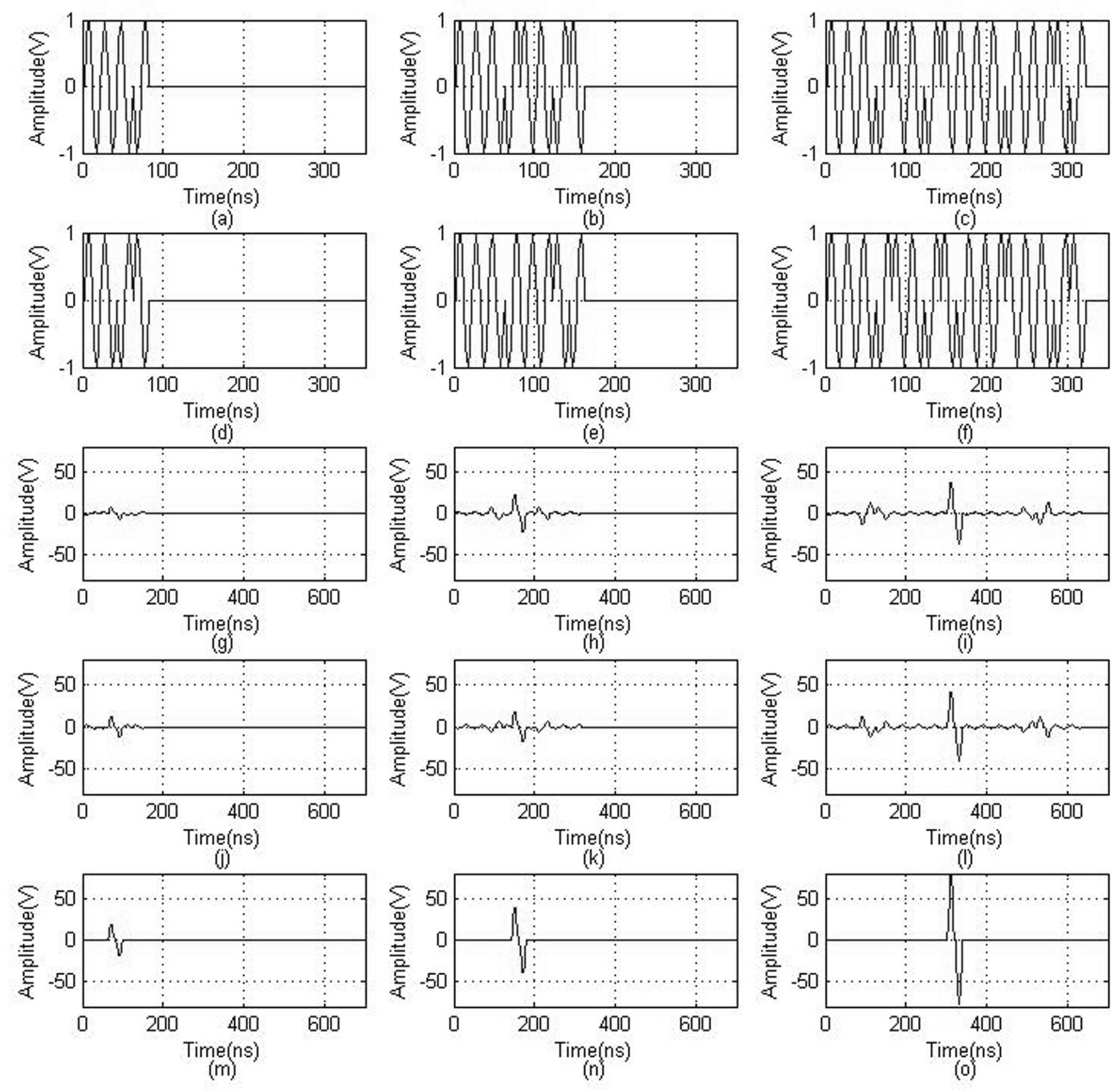

Computer simulation results for Golay coding and decoding. (a–c) are respectively the 4-bit, 8-bit, and 16-bit Golay sequence A codes for encoding. (d–f) are respectively the 4-bit, 8-bit, and 16-bit Golay sequence B codes for encoding. (g–i) are respectively the 4-bit, 8-bit, and 16-bit Golay sequence A codes for decoding. (j–l) are respectively the 4-bit, 8-bit, and 16-bit Golay sequence B codes for decoding. (m–o) are respectively the 4-bit, 8-bit, and 16-bit Golay decoding results.
