From: De novo assembled salivary gland transcriptome and expression pattern analyses for Rhipicephalus evertsi evertsi Neuman, 1897 male and female ticks

Figure 2

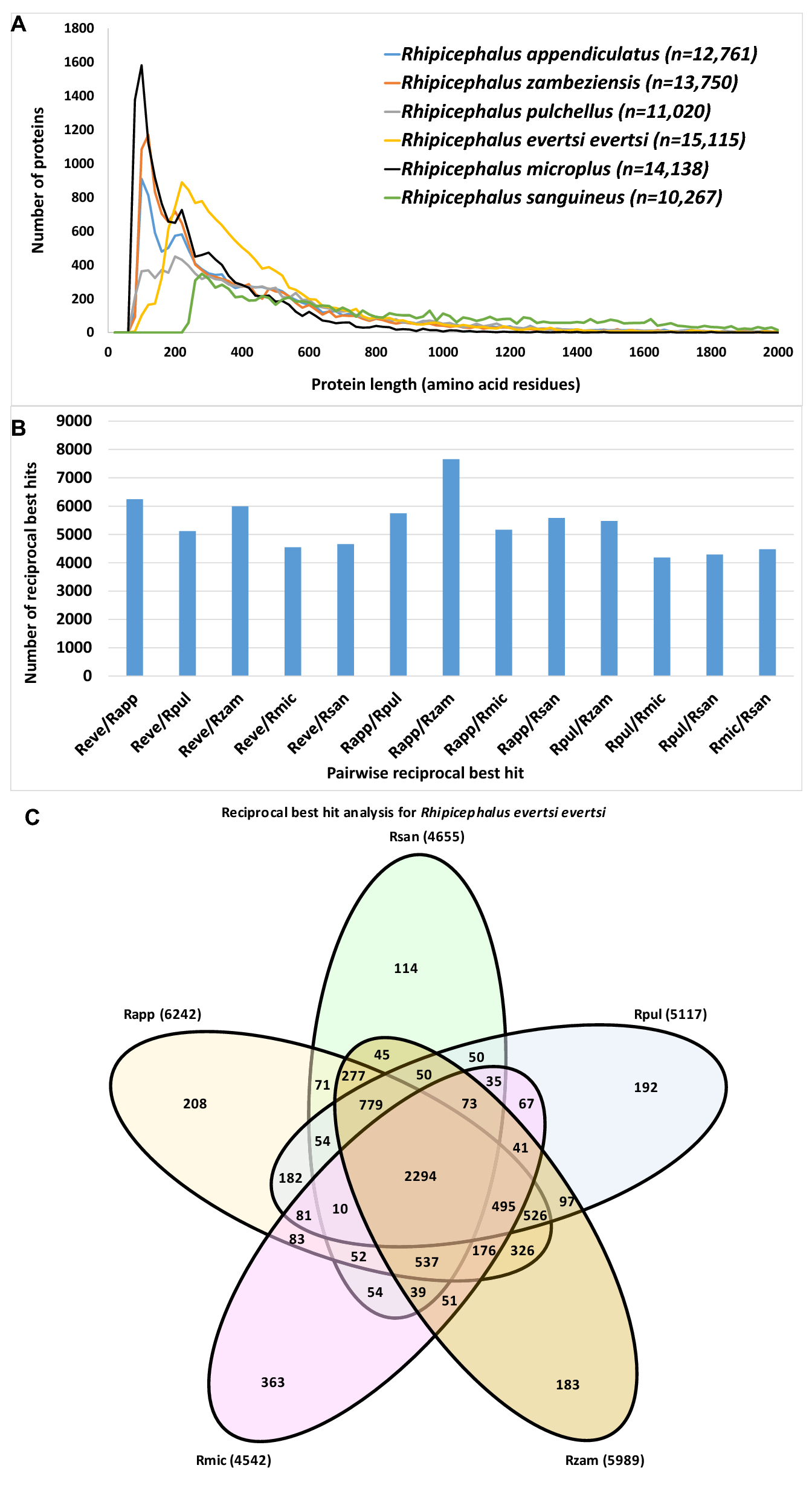

Comparison of the Rhipicephalus evertsi evertsi (Reve) transcriptome with other publically available Rhipicephalus transcriptomes that include Rhipicephalus appendiculatus (Rapp), Rhipicephalus microplus (Rmic), Rhipicephalus pulchellus (Rpul), Rhipicephalus sanguineus (Rsan) and Rhipicephalus zambeziensis (Rzam). (A) A plot of the protein length in amino acid residues presented up to 2000 residues against the number of proteins. Proteins were binned in windows of 20 based on protein length. (B) Pairwise reciprocal best hit analysis for the publically available Rhipicephalus transcriptomes. (C) Venn diagram to show the number of shared orthologs found for the Rhipicephalus evertsi evertsi transcriptome based on reciprocal best hits. Similar diagrams can be found for the other publically available Rhipicephalus transcriptomes in the supplementary material. Numbers in parenthesis indicate total number of reciprocal best hits for each transcriptome and while those shared among transcriptomes are indicated in numbers.
