Figure 8
From: Global wave number-4 pattern in the southern subtropical sea surface temperature

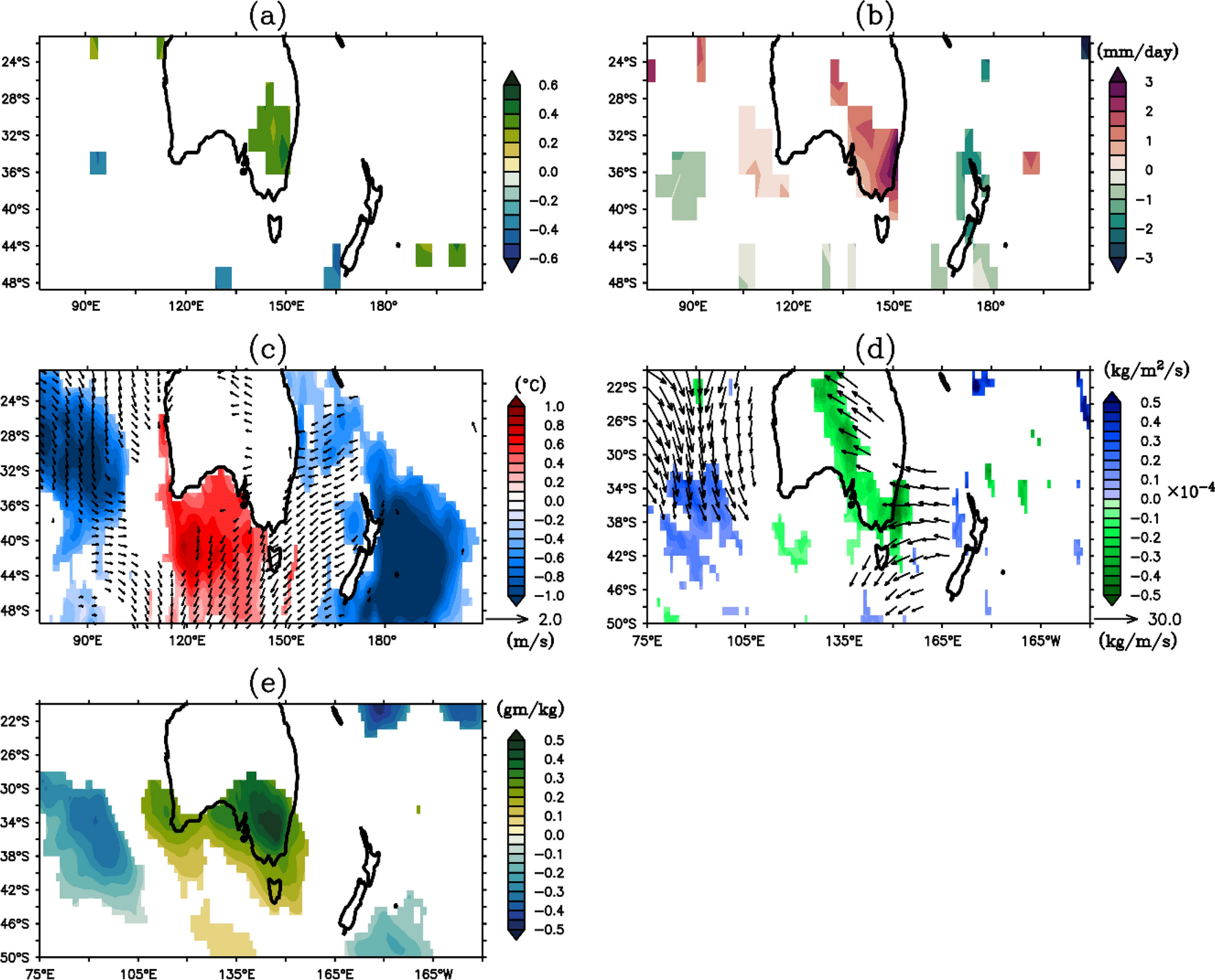

(a) Correlation field between IW4 and rainfall anomaly during austral summer. Composite of positive minus negative W4 extreme years in February (b) rainfall (in mm/day), (c) SST(shaded; in °C) and divergent wind at 850 hPa (vector; in m/s), (d) vertically integrated moisture divergence (shaded; in kg/m2/s) and moisture transport (vector; in kg/m/s) for whole atmosphere (i.e. surface to 1 Pa), and (e) vertically integrated specific humidity (in gm/kg) for whole atmosphere (i.e. surface to 1 Pa). Values less than 95% significance level are suppressed.
