From: Stimulatory, but not anxiogenic, doses of caffeine act centrally to activate interscapular brown adipose tissue thermogenesis in anesthetized male rats

Figure 3

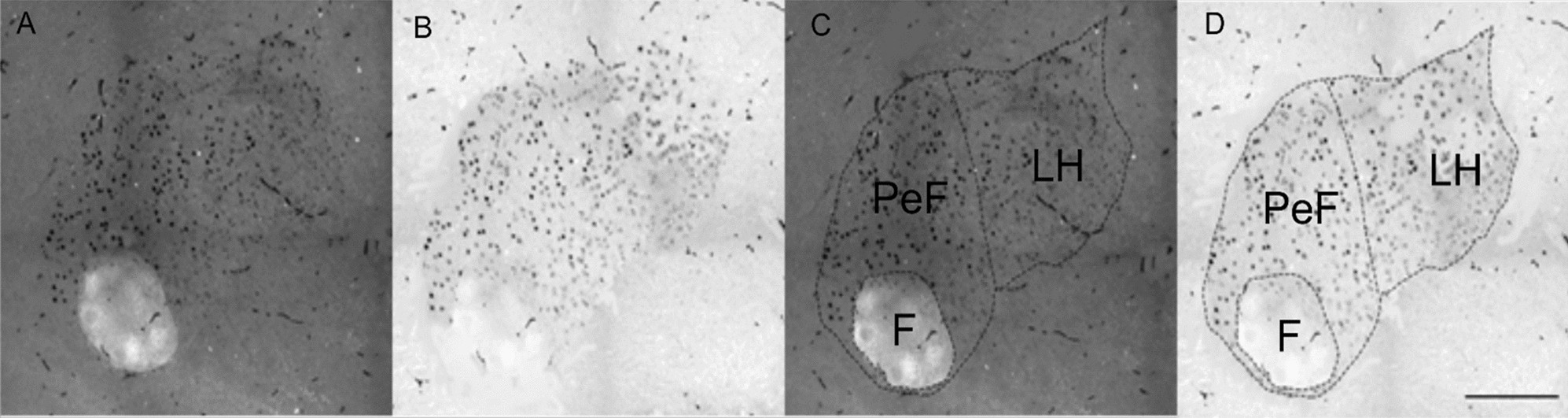

Photomicrographs illustrating the use of brightfield and darkfield microscopy for precise demarcation of anatomical boundaries in low background c-Fos-ir sections. (A) Darkfield images were utilized to reveal the detailed neuroanatomy by the contrast between myelinated tracts/areas and grey matter. (B) Brightfield photomicrographs of identical sections revealed c-Fos-ir nuclei; (C) the darkfield photomicrographs were used to precisely outline regions of interest (ROI). (D) The ROI was transferred to the brightfield micrograph for automated cell counting. F fornix, PeF peri-fornix, LH lateral hypothalamus.
