From: Grain boundary oxidation of proton-irradiated nuclear grade stainless steel in simulated primary water of pressurized water reactor

Figure 5

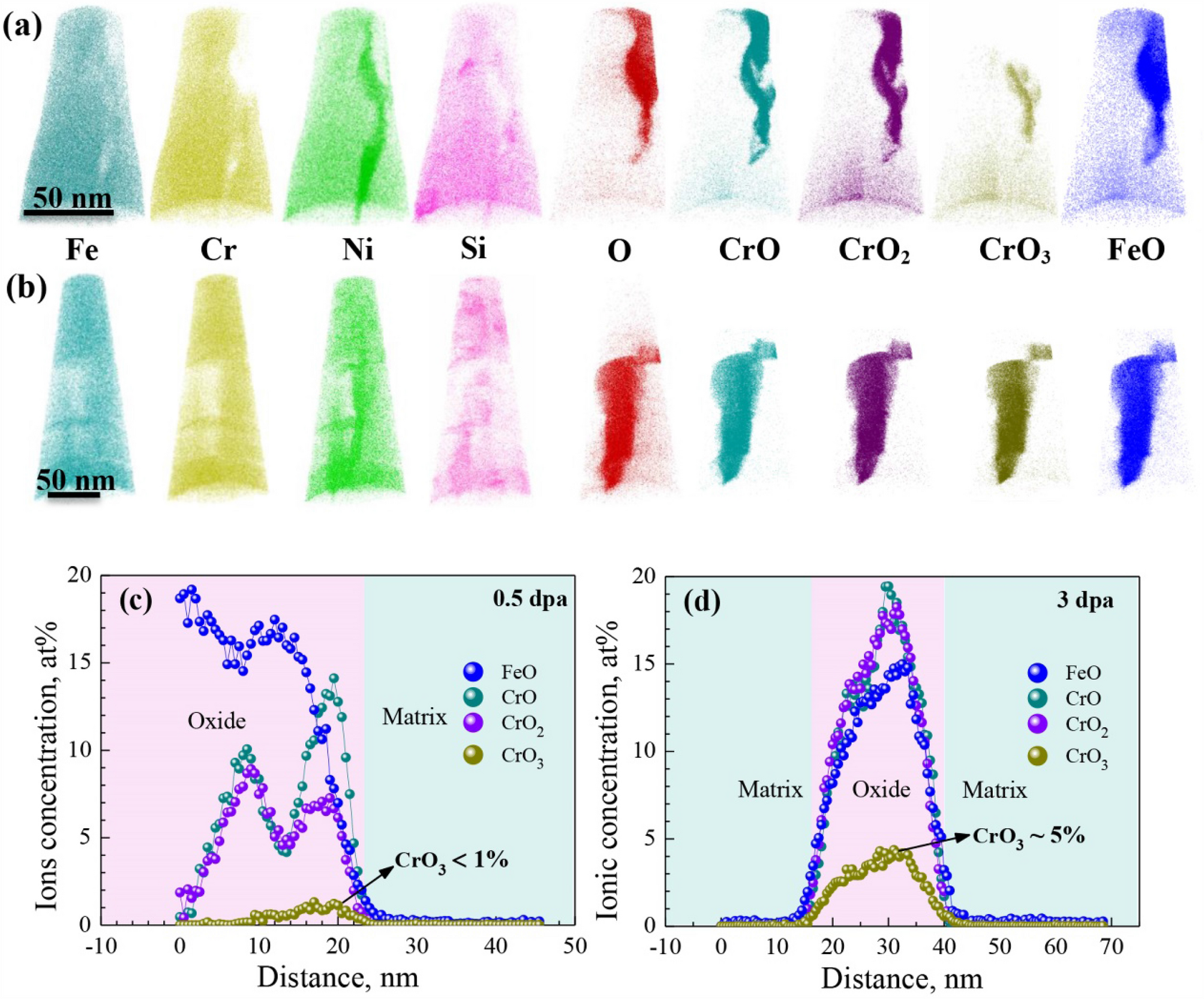

(a) and (b) Atom density maps showing the evaporated species for the grain boundary oxides on the 0.5- and 3-dpa irradiated specimens. The orientation of both data sets is identical to the orientation in Fig. 2a,b, where all ions of these data sets are shown in the same map. (c) and (d) Corresponding ions concentration profiles across the grain boundary oxides. *Atom density maps in this figure were reconstructed using the commercial CAMECA Imago Visualization and Analysis Software package (IVAS, Version 3.6.8). URL link: https://www.cameca.com/.
