Figure 7

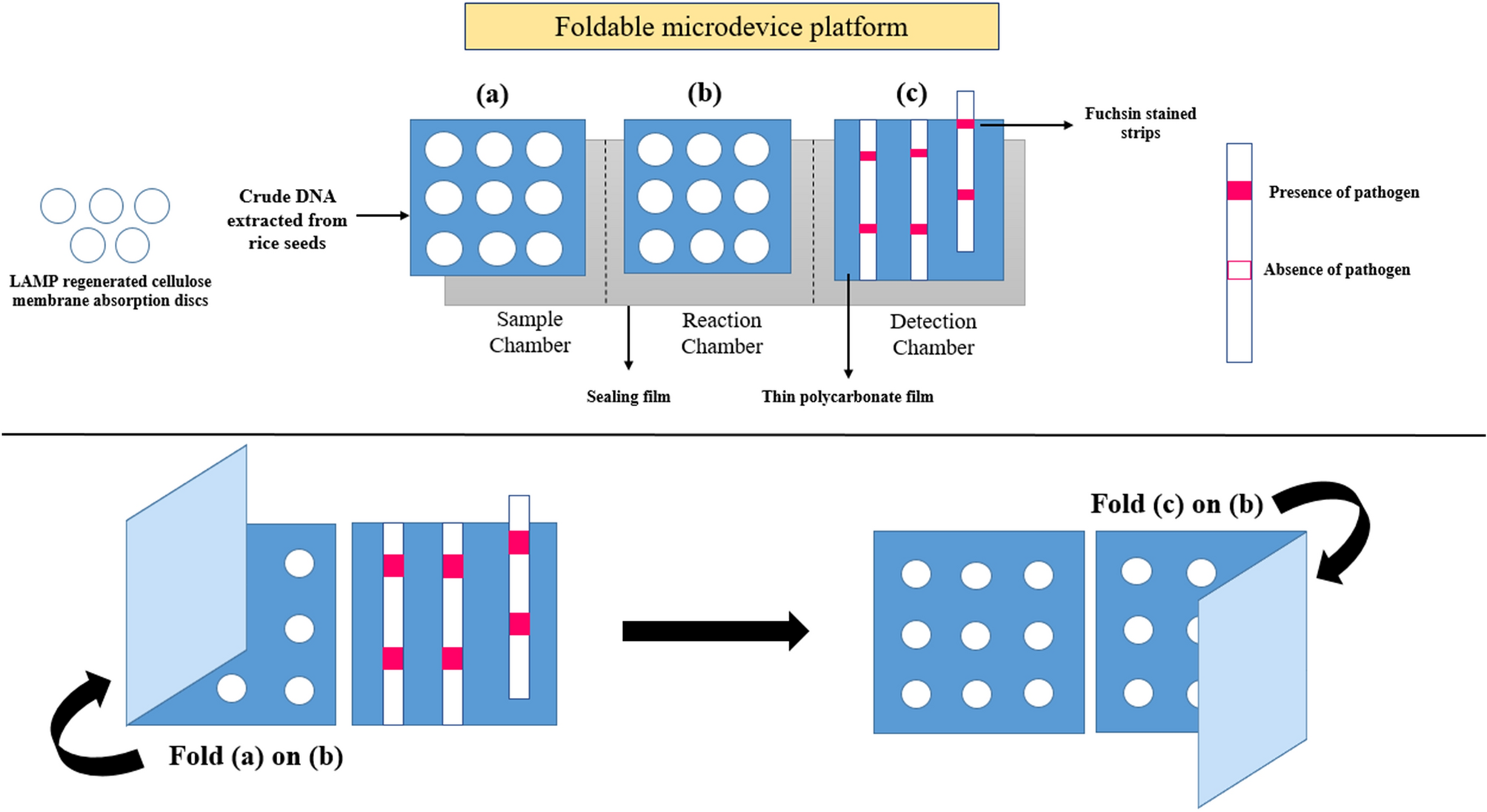

Overview of the membrane-based microdevice design. (a) Sample chamber with nine absorption discs, (b) reaction chamber, and (c) detection chamber with fuchsin stained strips.
Figure 7 | Scientific Reports
Overview of the membrane-based microdevice design. (a) Sample chamber with nine absorption discs, (b) reaction chamber, and (c) detection chamber with fuchsin stained strips.
