Figure 7
From: An experimental validation of partial discharge localization using electromagnetic time reversal

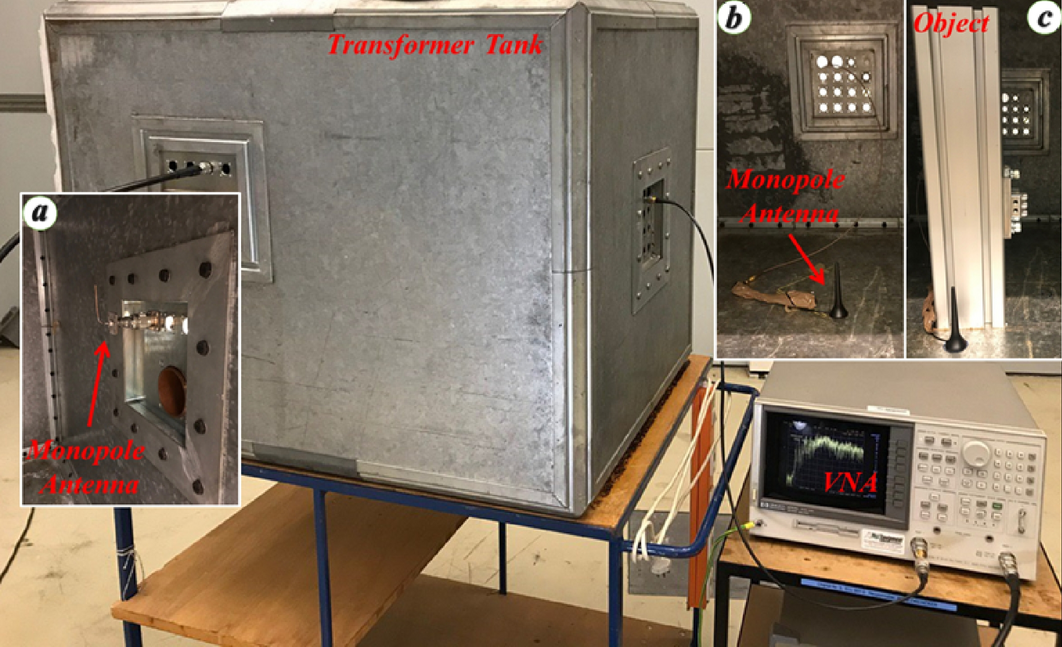

Test setup including the model for the transformer tank and the VNA. (a) The monopole antenna used as a sensor, (b) the monopole antenna used to emulate the PD source, and (c) metallic object representing the transformer winding.
