Figure 10

From: Comprehensive impedance investigation of low-cost anion exchange membrane electrolysis for large-scale hydrogen production

Figure 10

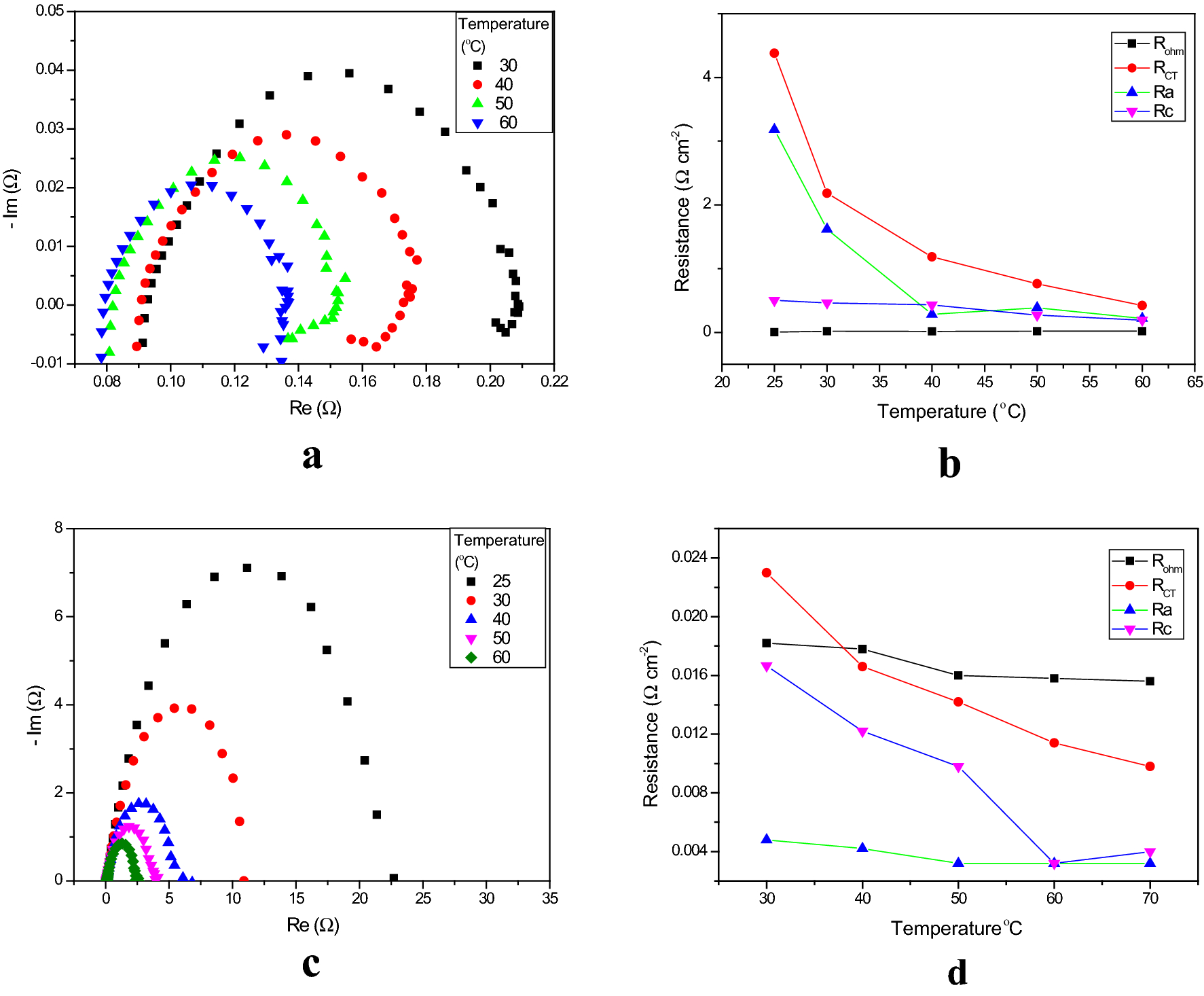

(a) Nyquist plots of the EIS measurements (from 100 kHz to 1 MHz) for the function of liquid electrolyte temperature at 1.5 V. (b) Variation in the electrochemical resistances as a function of temperature at 1.5 V. (c) Nyquist plots of the EIS measurements (from 100 kHz to 1 MHz) for the function of liquid electrolyte temperature at 1.9 V. (d) Variation in the electrochemical resistances as a function of temperature at 1.9 V.
