Figure 6

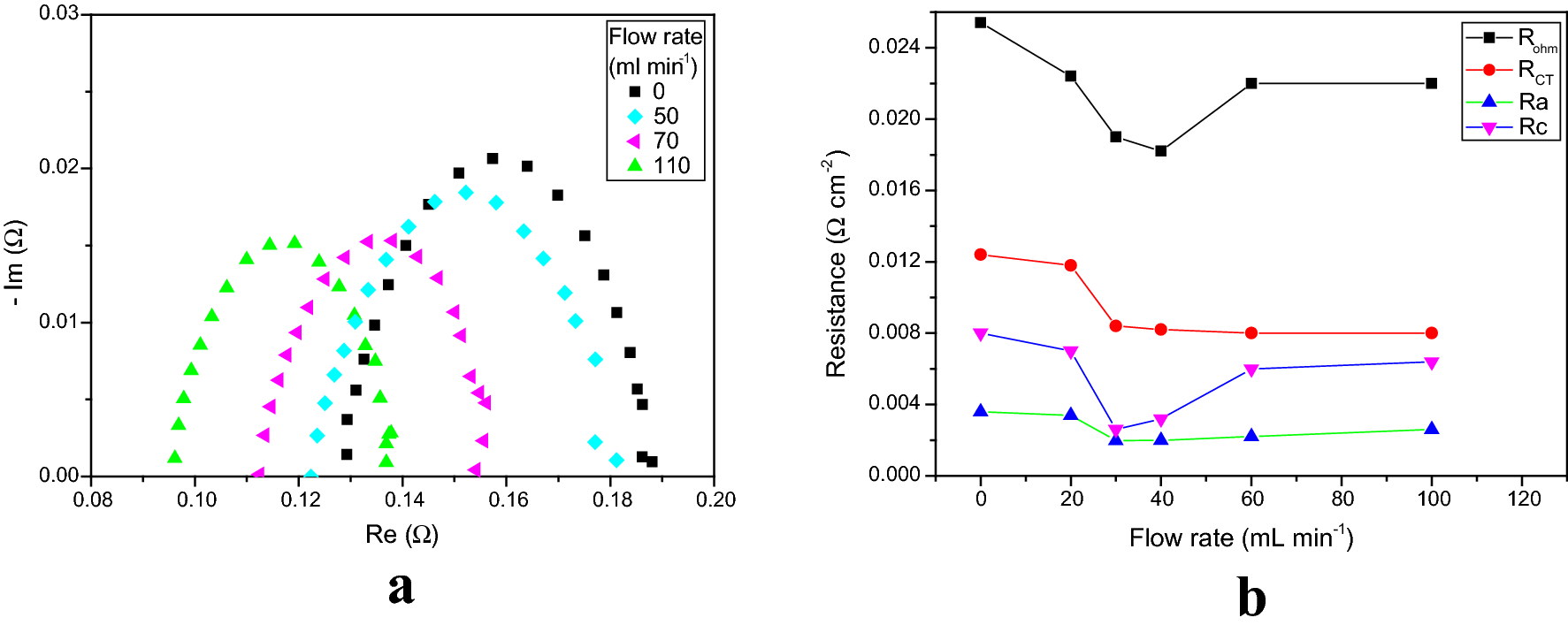

(a) Nyquist plots of EIS measurements (from 100 kHz to 1 MHz) from the function of liquid electrolyte flow rate at 1.9 V. (b) Variation in the relevant electrochemical resistances as a function of flow rate at 1.9 V.
