Figure 3

From: Comparing the protective effects of resveratrol, curcumin and sulforaphane against LPS/IFN-γ-mediated inflammation in doxorubicin-treated macrophages

Figure 3

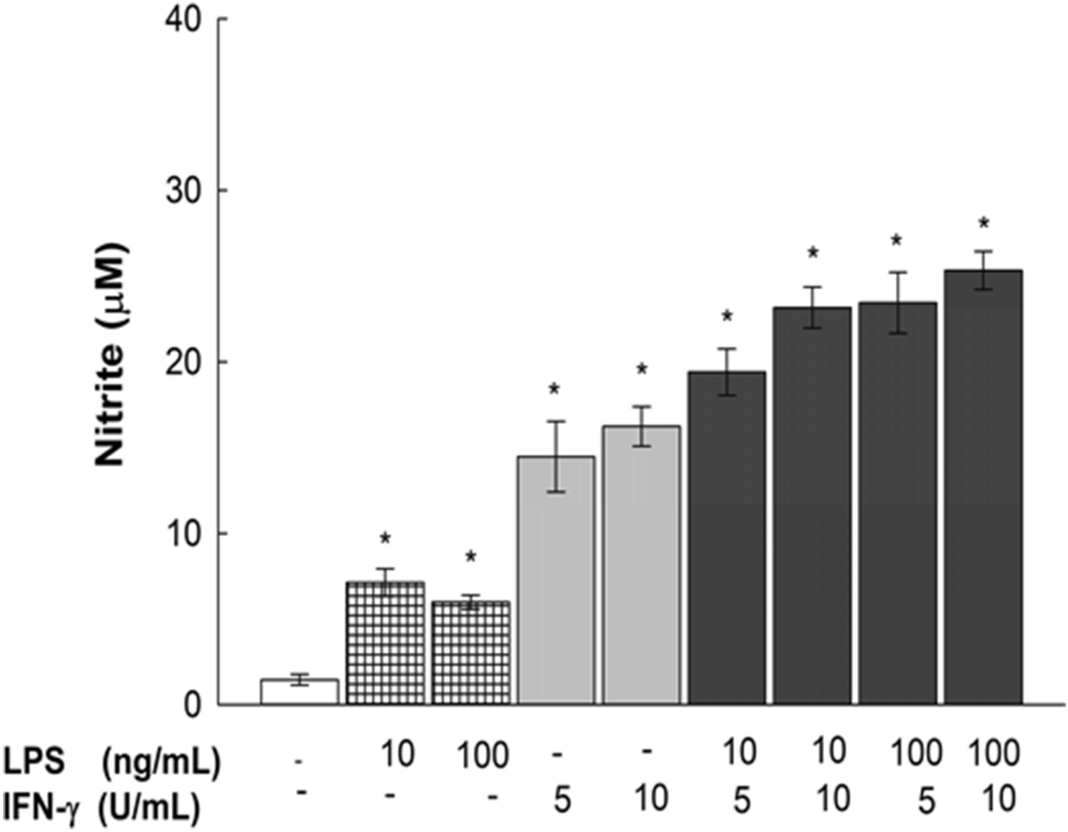

Concentration-dependent effects of LPS and IFN-γ on nitrite production in RAW 264.7 macrophages. RAW 264.7 macrophages were exposed to LPS (10 or 100 ng/mL) in the presence or absence of IFN-γ (5 or 10 U/mL) for 24 h. Data are expressed as mean ± S.E. (n = 8). Comparisons are made with ANOVA followed by Student–Newman–Keuls (SNK) post-hoc test; *, P < 0.05, compared with control.
