Figure 23

From: Cross-sectional anatomy, computed tomography, and magnetic resonance imaging of the banded houndshark (Triakis scyllium)

Figure 23

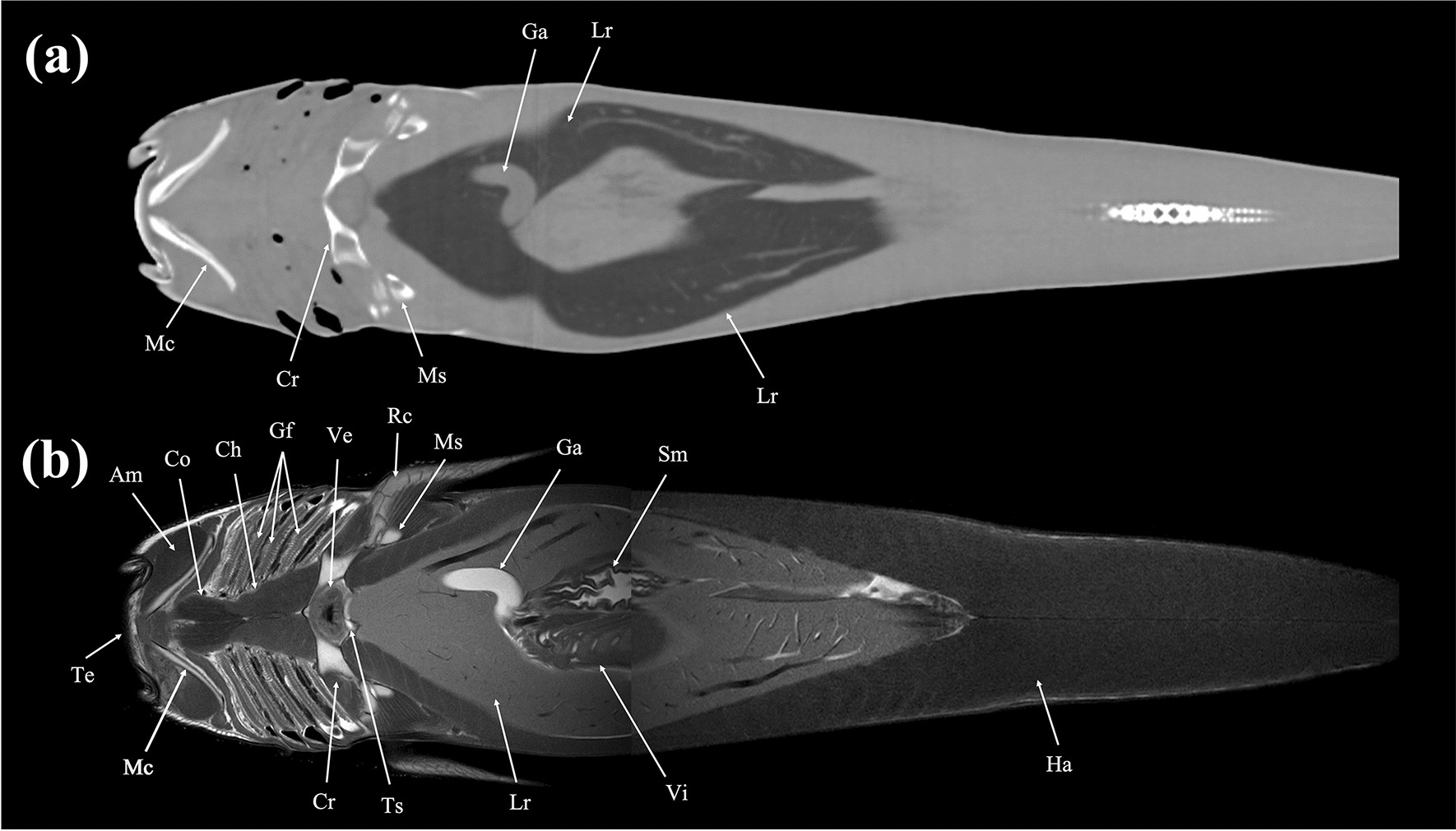

Dorsal (a) CT and (b) MR images of a banded houndshark (Triakis scyllium) at level 23 of Fig. 25. Am Adductor mandibularis, Co Coracomandibularis, Cr Coracoid bar, Ch Coracohyoideus, Ga Gall bladder, Gf Gill filament, Ha Hypaxial, Lr Liver, Mc Meckel’s cartilage, Ms Mesopterygium, Rc Radial cartilage, Sm Stomach, Te Teeth, Ts Transverse septum, Ve Ventricle, Vi Valvular intestine.
