Figure 2
From: Polariton condensation in an organic microcavity utilising a hybrid metal-DBR mirror

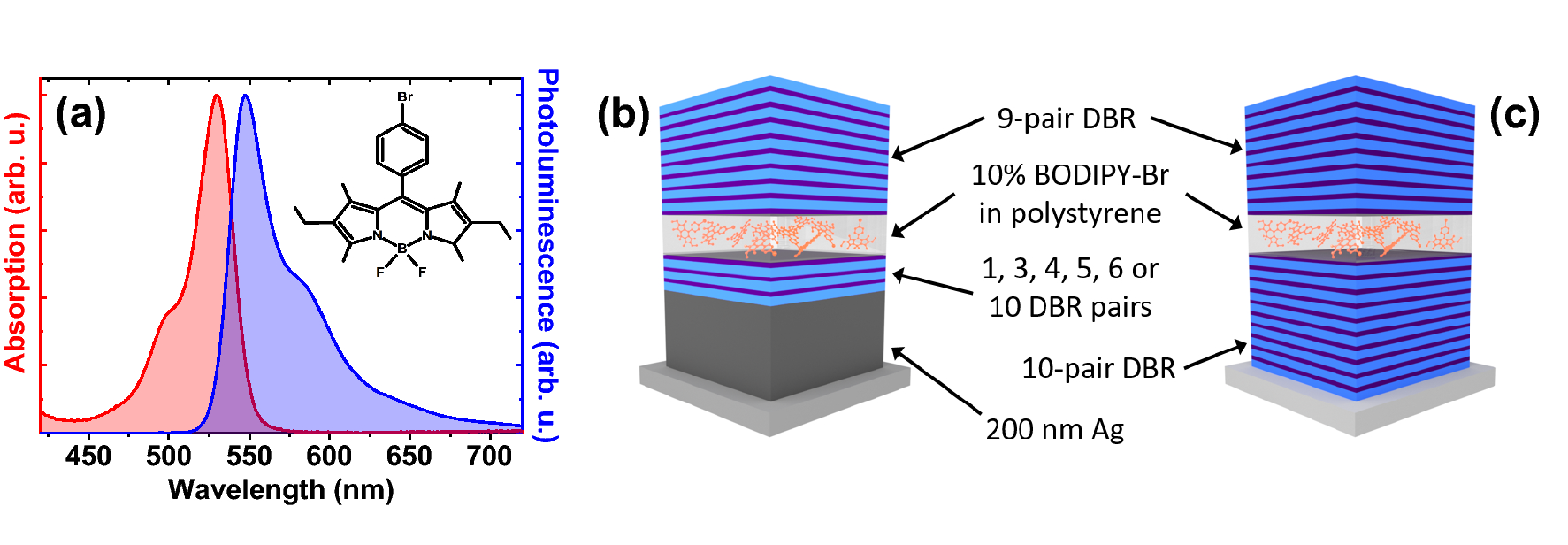

(a) Normalised absorption (red) and photoluminescence (blue) spectra of BODIPY-Br at 10% by mass in polystyrene. The molecular structure is shown in the inset. Schematic of (b) the hybrid Ag-DBR microcavity and (c) a conventional DBR–DBR microcavity.
