Figure 4
From: Wave based damage detection in solid structures using spatially asymmetric encoder–decoder network

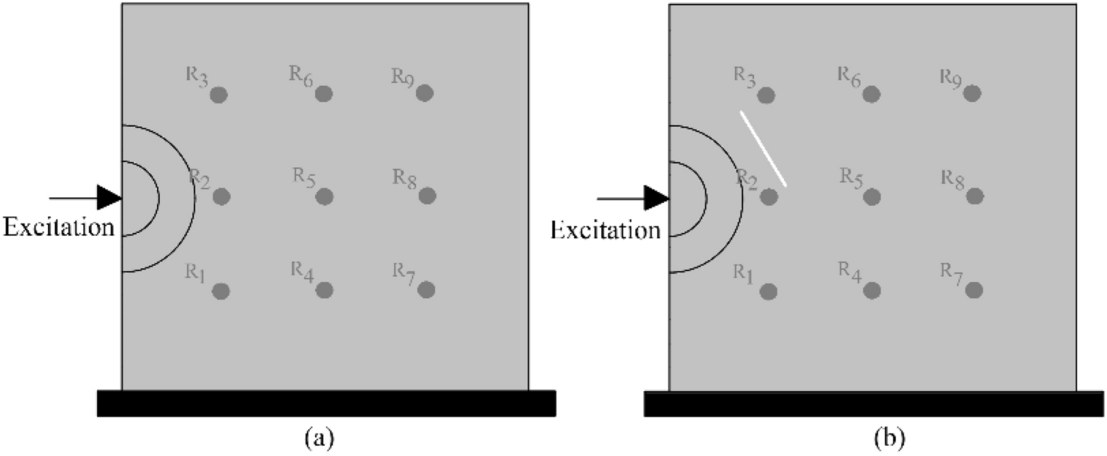

The boundary conditions and assigned reference points: (a) horizontal excitation without generated crack; (b) horizontal excitation with generated crack.
